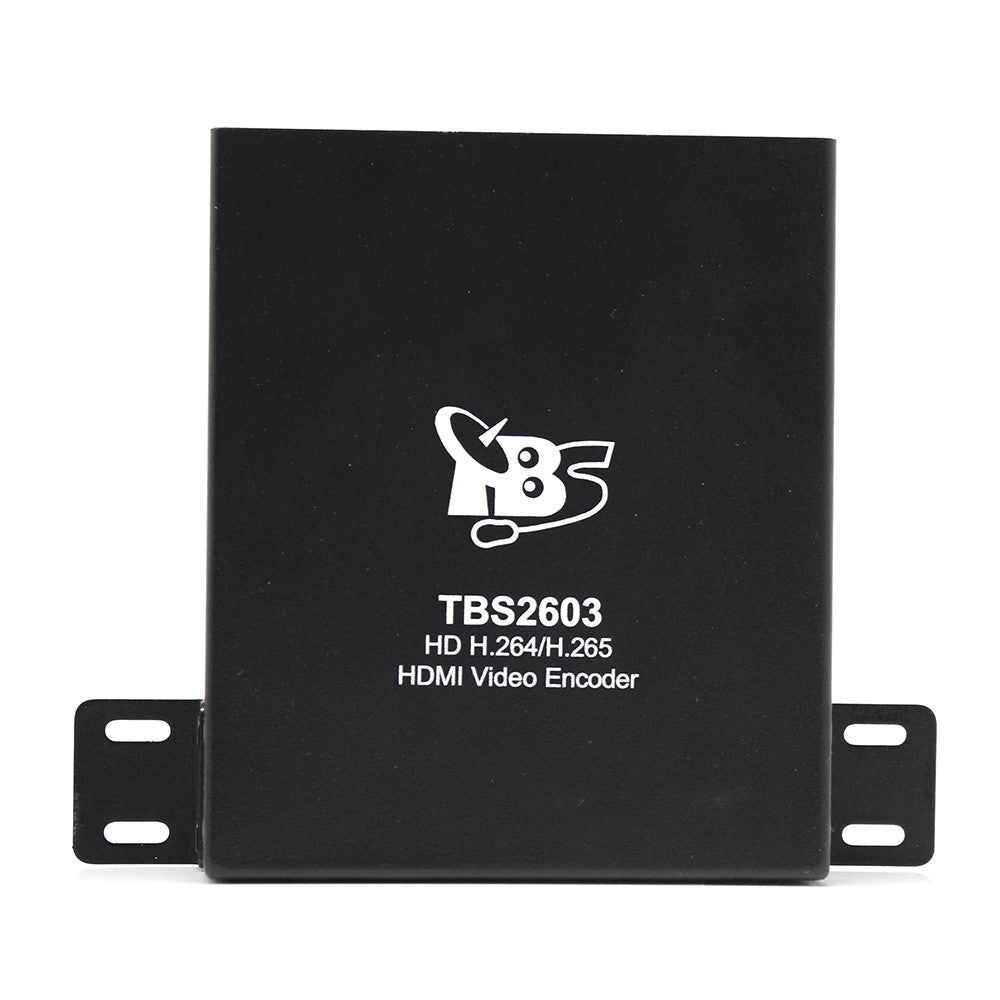

TBS2603 HD H.264/H.265 HDMI Video Encoder

TBS2603 HD H.264/H.265 HDMI Video Encoder

TBS2603 HD H.264/H.265 HDMI Video Encoder

Regular price £157.00 + VAT

£188.40 inc VAT

The TBS 2603 can accept an HDMI input up to 1920 x 1080 resolution creating a H.264 / H.265 stream compliant with HTTP | RTSP | RTP | RTMP | UDP protocols. With low latency and variable bit rate the TBS2603 is perfect for streaming HDMI devices over an IP network.

Contact us

The TBS2603 has now been discontinued and replaced with the TBS2603SEV2 - Available here



The TBS 2603 can accept an HDMI input up to 1920 x 1080 resolution creating a H.264 / H.265 stream compliant with HTTP | RTSP | RTP | RTMP | UDP protocols. With low latency and variable bit rate the TBS2603 is perfect for streaming HDMI devices over an IP network.

TBS2603 professional H.265 HDMI encoder is our newest HD audio & video encoding device with powerful functionality. It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Features
Support multiple equipments display at the same time on a computer
Support direct network connection without HD capture card
Main stream and secondary stream can use different network protocols for transmission
Low Power consumption, less than 6W

Application
IPTV
Digital Signage
Video Conference
Replace HD Video Capture Card
Hotel TV system
Live Broadcast;
Teaching/Campus Broadcast
Recording System
NVR (Net Video Recorder)


Video:
    Input: 1x HDMI (1.3a);
    HDMI Resolution:
    1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc.
    Encoding: BASELINE PROFILE (for H.264 and H.265) / MAIN PROFILE (for H.264 only)/ HIGH PROFILE (for H.264 only)
    Data Rate: 0.8Mbps~12Mbps;
    Rate Control: CBR/VBR, 16KBIT/S~12MBIT/S
    Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening.
Dimension: 110.5*70mm (length x height)
Max Power consumption: 6W

Audio:
    Encoding: AAC, MP3;
    Sampling rate: Auto;
    Bit-rate: 32K/48K/64K/96K/128K/160K/192K;
    Sampling precision: 16 bit;
    Data Rate: 64Kb/s ~ 384Kb/s;

System
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX
Ethernet/RJ45: 1000 Base-T Ethernet interface Protocol: RTSP/RTP/RTMP, HTTP, UDP

Package Contents
1x TBS2603
1x AC line
1x Power adapter
1x HDMI cable
