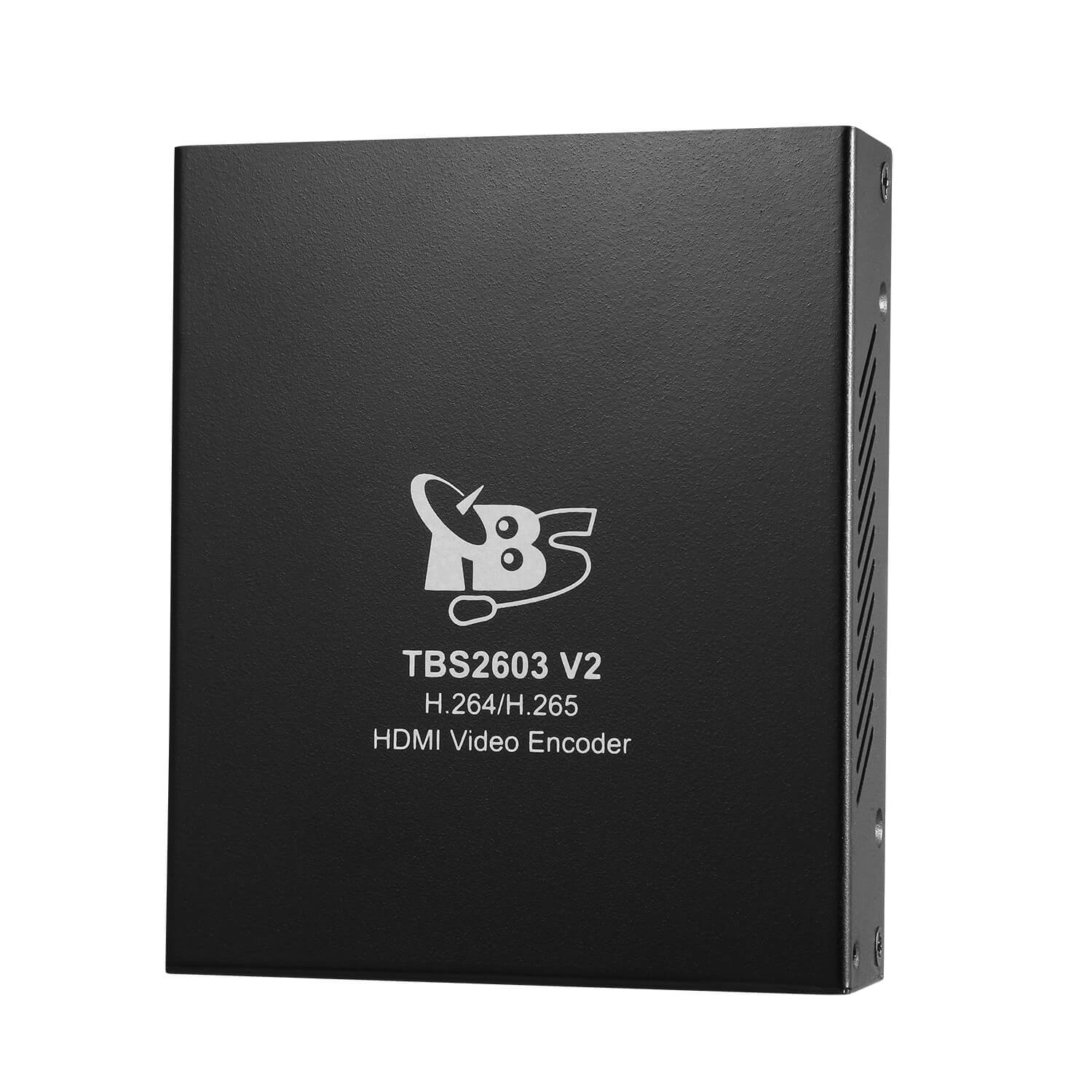

TBS2603V2 NDI®|HX Supported H.265/H.264 HDMI Video Encoder
TBS2603V2 NDI®|HX Supported H.265/H.264 HDMI Video Encoder
An additional license fee is payable for the NDI activation. Please contact us for further details.
TBS2603V2 is an NDI®|HX supported H.264/H.265 video Encoder, It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation, and other industries.
TBS2603V2 NDI®|HX use a high efficiency, low bandwidth form of NDI®, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.
Features:
- Visual input (Preview)
- HDMI video input,H.264/H.265 Encode
- Supports video or audio encode separately: video out only or audio out only (the default is "video + audio" out).
- NDI®|HX streams output
- HDMI-embedded & Line-in Audio input
- AAC-HE, AAC-LC, MP3, g.711 audio encoding
- Bitrate of output video stream is adjustable from 500kbps to 20Mbps
- Support HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT, NDI | HX,
- Support NDI | HX2
- ROI (Regin of Interest)
- Support Video Rotate, Video Crop
- Support inserting Logo, Text/Scrolling and Time Code Display to the video
- Support Input Preview
- Support HDCP and HD blue-ray
- Flexible and friendly webpage control
- Stable and effective, support 7 x 24h working time
Model NO. | TBS2603 V2 |
Video Input | 1x HDMI 1.4 |
Audio Input | HDMI embeded, Line in |
Video | |
Input Resolution | 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; 720x576; 640x480, etc. |
Ouput Resolution | 1920x1080; 1280x720; 1024x768; 960x540; 850x480; 720x576; 720x480; 640x480; 640x320; 320x180. |
Codec | H264 Baseline/H264 Main/H264 High Level 4.2; H265 Main Level 4.1 |
Frame Rate | 5 ~ 60 fps |
Key Frame | 5 ~ 200fps |
BitRate | 0.5Mbps ~ 20Mbps |
BitRate Control | CBR, VBR |
Protocol | HTTP, HLS(M3U8), RTSP, RTP/UDP Unicast/Multicast, RTMP/RTMPS, SRT, NDI|HX |
Audio | |
Encode | AAC(AAC-LC, AAC-HE), MP3, G.711 |
Sampling precision | 16 bit |
BitRate | 24Kb/s ~ 320Kb/s |
System | |
Ethernet / RJ45 | 1000 Base-T Ethernet interface |
Supported System | Windows XP/VISTA/SERVER/WIN7/WIN10; Linux; MAC OS |
Control | Web UI. Recommened Browser: Google Chrome, Firefox |
General Spec. | |
Dimension | 114mm * 96mm * 27mm |
Power Consumption | Less than 5W |
