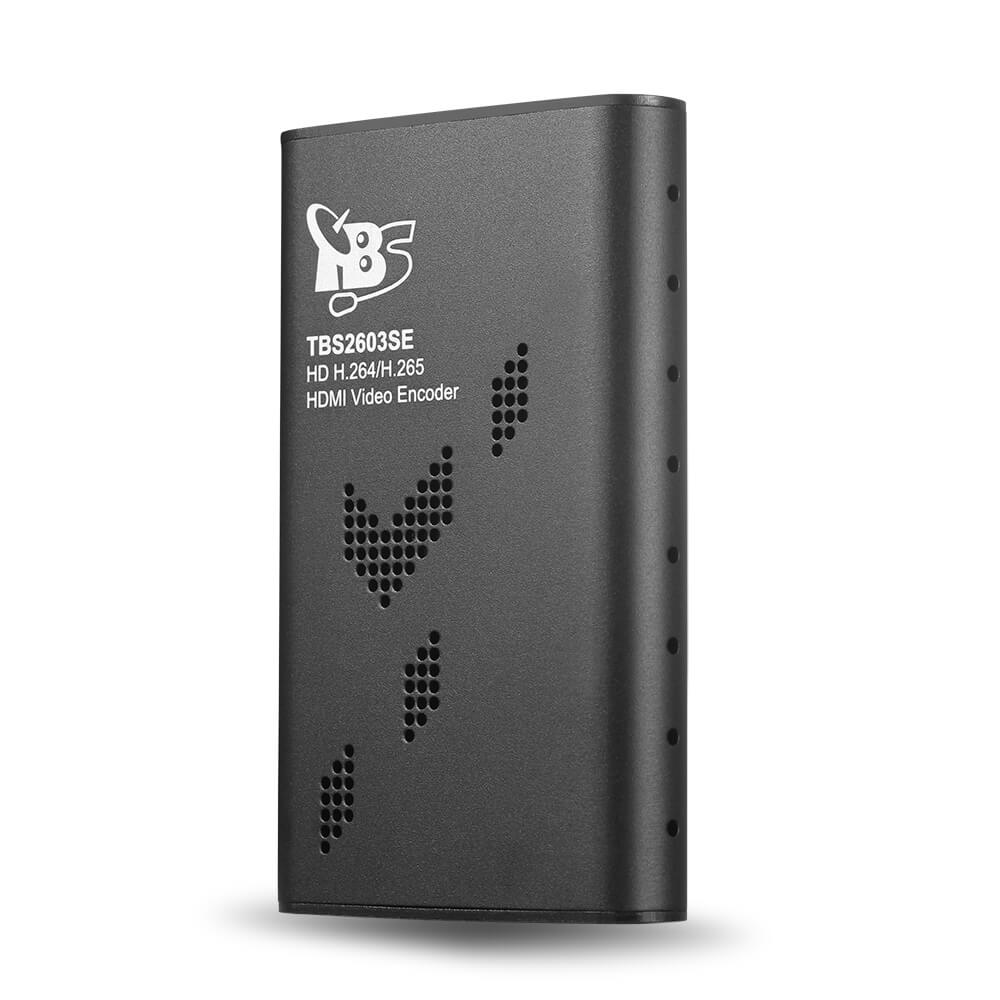

TBS2603se Professional HD H.265/H.264 HDMI Video Encoder

TBS2603se Professional HD H.265/H.264 HDMI Video Encoder

TBS2603se Professional HD H.265/H.264 HDMI Video Encoder

Regular price £199.00 + VAT

£238.80 inc VAT

The TBS2603 has now been discontinued and replaced with the TBS2603SEV2 - Available here

The TBS2603SE is now only available in the NDI version.

The TBS2603se is a professional HDMI video encoder, which supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. The TBS2603se can encode video streams from any HDMI video source to various media streaming servers (Wowza, Read 5, Xtream Codes, Flussonic, FMS etc) or online...

Contact us

← Previous Product Next Product →

The TBS2603 has now been discontinued and replaced with the TBS2603SEV2 - Available here

The TBS2603SE is now only available in the NDI version.

The TBS2603se is a professional HDMI video encoder, which supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. The TBS2603se can encode video streams from any HDMI video source to various media streaming servers (Wowza, Read 5, Xtream Codes, Flussonic, FMS etc) or online live broadcast platforms (Youtube, Facebook, Twitch, Vimeo, etc. ) over IP in real time.

TBS2603se video encoder is widely applied education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Model Numbver TBS2603SE
Video Input 1x HDMI 1.4
Audio Input HDMI embeded
Video
Input Resolution 1920x1080P_50/60HZ; 1920x1080I_50/60HZ;1280x720P 50/60HZ;
720x576;640x480, and etc.
Ouput Resolution 1920x1080@60fps; 1680x1050; 1280x720; 1024x576; 850x480;
720x576;720x480;640x480;480x360;360x240; auto; customized and etc.
Encode H264 base line, H264 Main, H264 High, H265 Main
BitRate 0.5Mbps-20Mbps
BitRate Control CBR, VBR, AVBR,FIXQP
Protocol HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP(RTMPS)
Audio
Encode AAC, MP3, MPEG2, PCMA
Sampling rate 16K, 32K, 44.1K, 48K
Sampling precision 16 bit
BitRate 32Kb/s ~ 256Kb/s
Network Stream IN
Video H264, H265
Audio MPEG2, MP3, AAC
Protocol HTTP, RTSP, RTP/UDP
System
Ethernet / RJ45 1000 Base-T Ethernet interface
Supported System Windows XP/VISTA/SERVER/WIN7/WIN10 ; Linux; MAC OS
Control webUI
General Spec.
Dimension 98*61*15mm
Power Consumption Less than 6W
