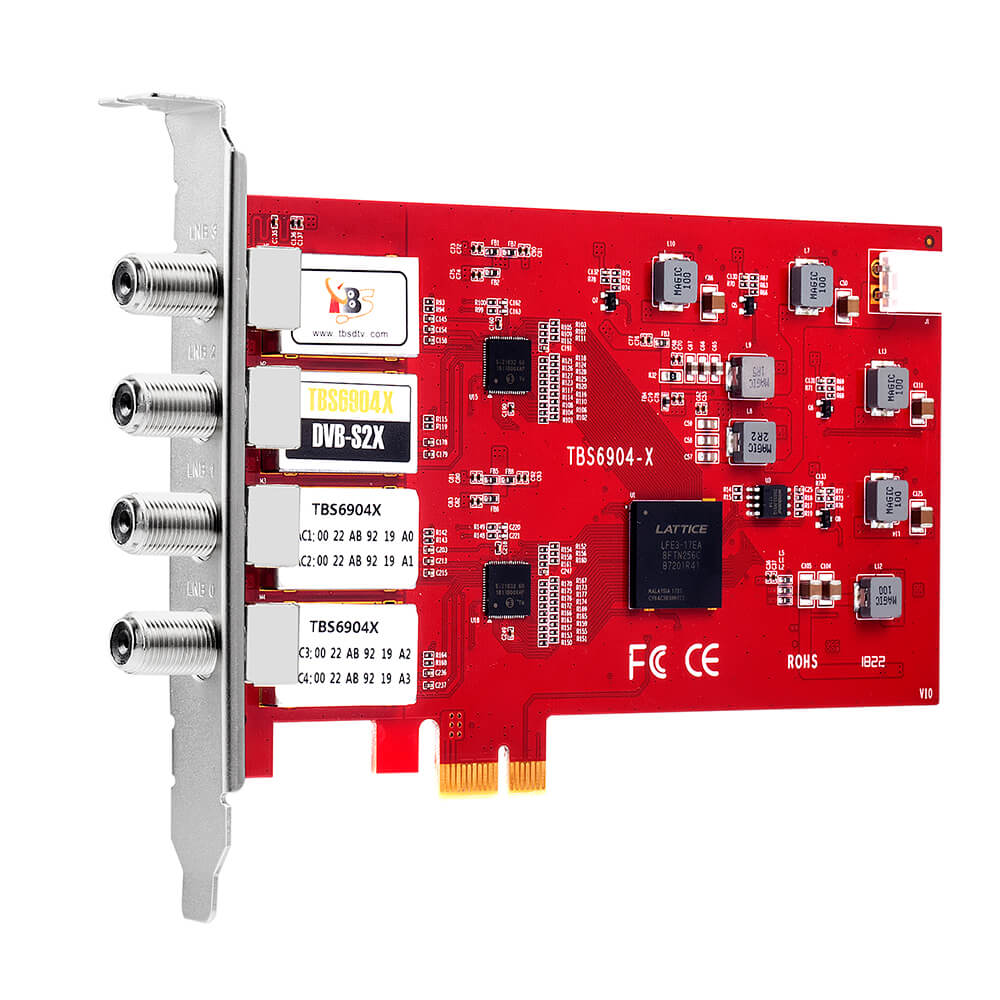

TBS6904-X DVB-S2/S2X Quad Tuner PCIe Card

TBS6904-X DVB-S2/S2X Quad Tuner PCIe Card

TBS6904-X DVB-S2/S2X Quad Tuner PCIe Card

Regular price £195.00 + VAT

£234.00 inc VAT

TBS 6904-X is a PCI Express interface digital satellite TV tuner card with four tuners for watching and recording Free to Air (FTA) satellite TV on PC. The four advanced DVB-S2/S2X/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time. This quad tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Main Features:



...

Contact us

TBS 6904-X is a PCI Express interface digital satellite TV tuner card with four tuners for watching and recording Free to Air (FTA) satellite TV on PC. The four advanced DVB-S2/S2X/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time. This quad tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Main Features:



  • Support Quad DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
  • Up to 173M/bps(TS Data Rate)
  • Quad flexible TS interfaces
  •

    Applications:

    • Data receiving
    • IPTV streaming
    • Media monitoring
    • Digital content distribution

    Model TBS6904-X
    symbol rates 1-45Msps
    DVB-S/S2/S2X
    DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
    16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    32APSK 3/4, 4/5, 5/6, 8/9, 9/10
    DVB-S2X QPSK 13/45, 9/20, 11/20
    2_4_2_APSK 100/180, 104/180
    8PSK 23/36, 25/36, 13/18
    8_8_APSK 90/180, 96/180, 100/180, 18/30, 20/30
    16APSK 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
    4_12_16rb_APSK 2/3
    4_8_4_16_APSK 128/180, 132/180, 140/180
    Power consumption
    Input/ Power: 12V/7~15W
    temperature 0°~ 60°
    Other information:
    System Requirements Windows XP / Vista/ 7/8/10, Linux
    Available PCI Express x1, x4, x8 or x16 slot
    Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
    Dimension:
    TV tuner card size 145*92*1.6mm
    Net weight 189g
    Gift Box Size 200*130*30mm
    Weight 400g
    Package Contents 1* TBS6904-X
    1* Power cable
