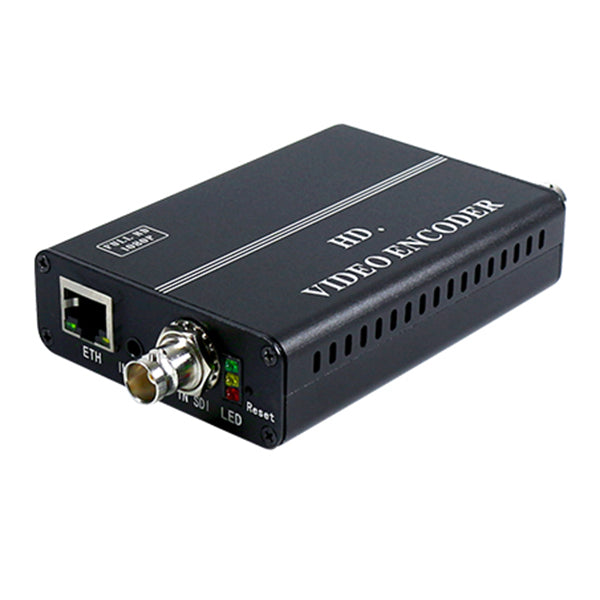

ES264SDI - EasyStream SDI H.264 HD Encoder

ES264SDI - EasyStream SDI H.264 HD Encoder

ES264SDI - EasyStream SDI H.264 HD Encoder

Regular price £145.00 + VAT

£174.00 inc VAT
  • 1-channel HD SDI input, 1-channel audio input.
  • Single stream output.H.264 format (max 30fps)
  • Audio: MP3, AAC, G.711 format.
  • Simple web based user interface with stream preview.
  • Supports HTTP / RTSP / RTP/ TCP / RTMP /  UDP / ONVIF protocols.

The EasyStream ES264SDI encoder is a cost effective HD SDI to H.264 HD encoder. Input up to 1920 x 1080 60fps, output up to 1920 x...

in stock

  • 1-channel HD SDI input, 1-channel audio input.
  • Single stream output.H.264 format (max 30fps)
  • Audio: MP3, AAC, G.711 format.
  • Simple web based user interface with stream preview.
  • Supports HTTP / RTSP / RTP/ TCP / RTMP /  UDP / ONVIF protocols.

The EasyStream ES264SDI encoder is a cost effective HD SDI to H.264 HD encoder. Input up to 1920 x 1080 60fps, output up to 1920 x 1080 30 fps.

With a simple web based user interface the ES264 SDI encoder is ideal for live streaming to facebook, youtube, castr, twitch etc.

 The EasyStream ES264 features a standby mode, this will display a blue screen when the attached device goes to standby, the stream will automatically recover when the device is switched out of standby.

The simple dashboard produces a live preview of your stream, so you can check the quality before pushing live to any RTMP server.

With UDP Multicast output the ES264 can stream a multicast H.264 stream on to your local network, this stream can then be accessed by any connected device, such as PC, mobile or set top box.

The EasyStream ES264 features a text overlay option, enabling a simple text on screen identifier.

Product model ES264SDI - EasyStream SDI H.264 HD Encoder
Input 1 channel SDI input,1 channel 3.5 audio input
Output 1 channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio SDI, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
The common use Power supply 12V~2A
power consumption 5W
Size 100mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.3KG
