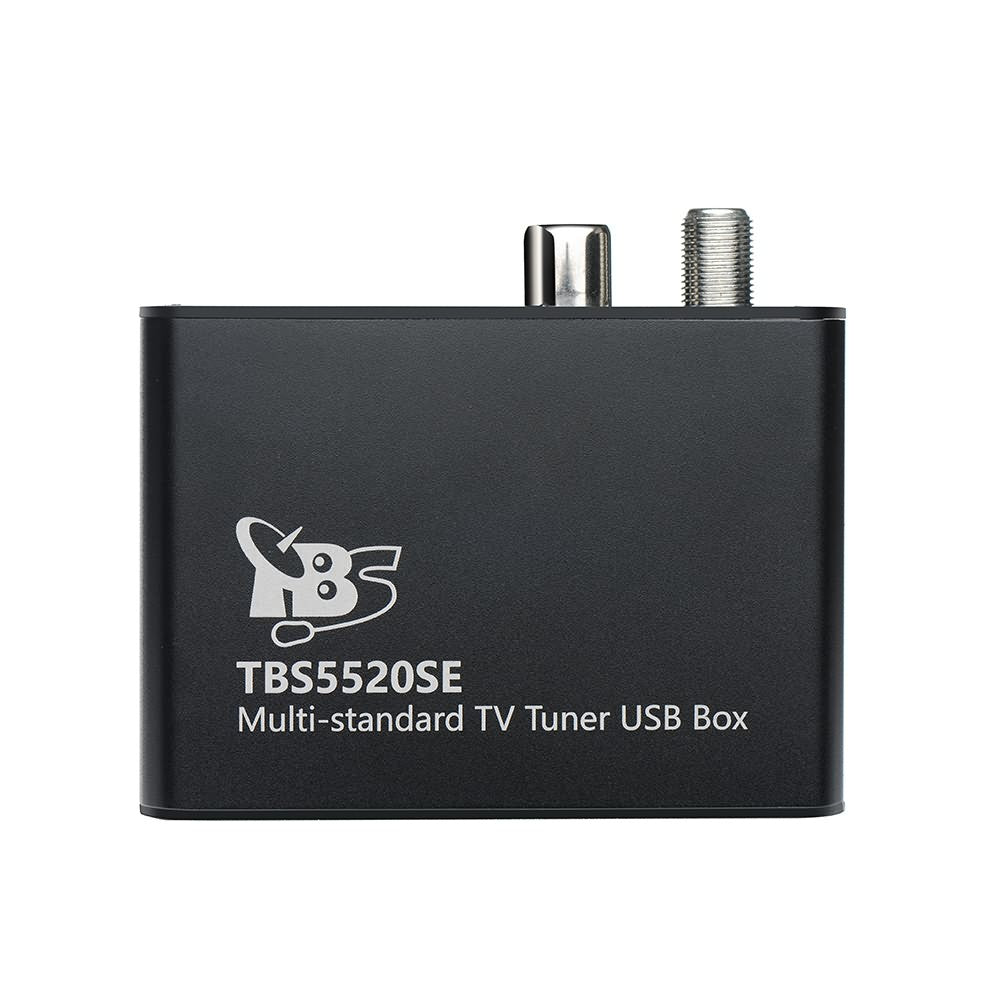

TBS5520SE Multi-standard TV Tuner USB Box
TBS5520SE Multi-standard TV Tuner USB Box
TBS5520SE is a multi-standard external TV tuner with USB2.0 interface, it is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ISDB-T. Through the USB interface, you can easily plug the TBS5520SE Universal TV Tuner to your desktop or laptop PC, with appropriate signal cable connected and software installed, it’s convenient to switch among different standards, and enjoy more TV channels than using just one single TV standard.
Main Features:
- Multi-standard dual USB box
- Watch & record satellite TV/ radio programs on PC
- EPG (Electronic Program Guide) support
- Unicable/one cable compatible
Applications:
- Data receiving
- IPTV streaming
- Media monitoring
- Digital content distribution
|
ISDB-T |
COFDM demodulator and FEC decoding |
|
Support 3 layers decoding |
|
|
TMCC decoding |
|
|
Support differential demodulation |
|
|
AC1 and AC2 decoding |
|
|
DVB-T2 and T2-Lite |
Receiving channel: VHF band, UHF band |
|
Bandwidth: 1.7, 5, 6, 7, 8MHz |
|
|
FEC: QPSK, 16QAM, 64QAM,256QAM |
|
|
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K |
|
|
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
DVB-C2 |
COFDM demodulator(16_QAM to 4096_QAM) |
|
FEC(LDPC/BCH) decoder |
|
|
Bandwidth: 6MHz, 7MHz, 8MHz |
|
|
DVB-C and ITU-T J.83 Annex B |
QAM demodulator |
|
FEC decoder |
|
|
1 to 7.2MSymbol/s |
|
|
DVB-S/S2/S2X |
symbol rates: 1-45Msps |
|
FEC: DVB-S/S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 13/45, 9/20, 11/20 2_4_2_APSK: 100/180, 104/180 8PSK: 23/36, 25/36, 13/18 8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180 |
|
|
Power consumption |
|
|
Input/ Power: |
5V/5W |
|
temperature |
0~60℃ |
Other information:
|
System Requirements |
Windows XP / Vista/ 7/8/10, Linux |
|
AvailableUSB 2.0 slot |
|
|
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S) |
|
|
Dimension: |
|
|
TV tuner box size |
9*7.5*2.5(cm) |
|
Net weight |
110g |
|
Gift Box Size |
17*16.5*8.5(cm) |
|
Weight |
350g |
|
Package Contents |
1 x TBS5520SE |
|
1 x USB cable |
|
|
1 x F-IEC |
|
