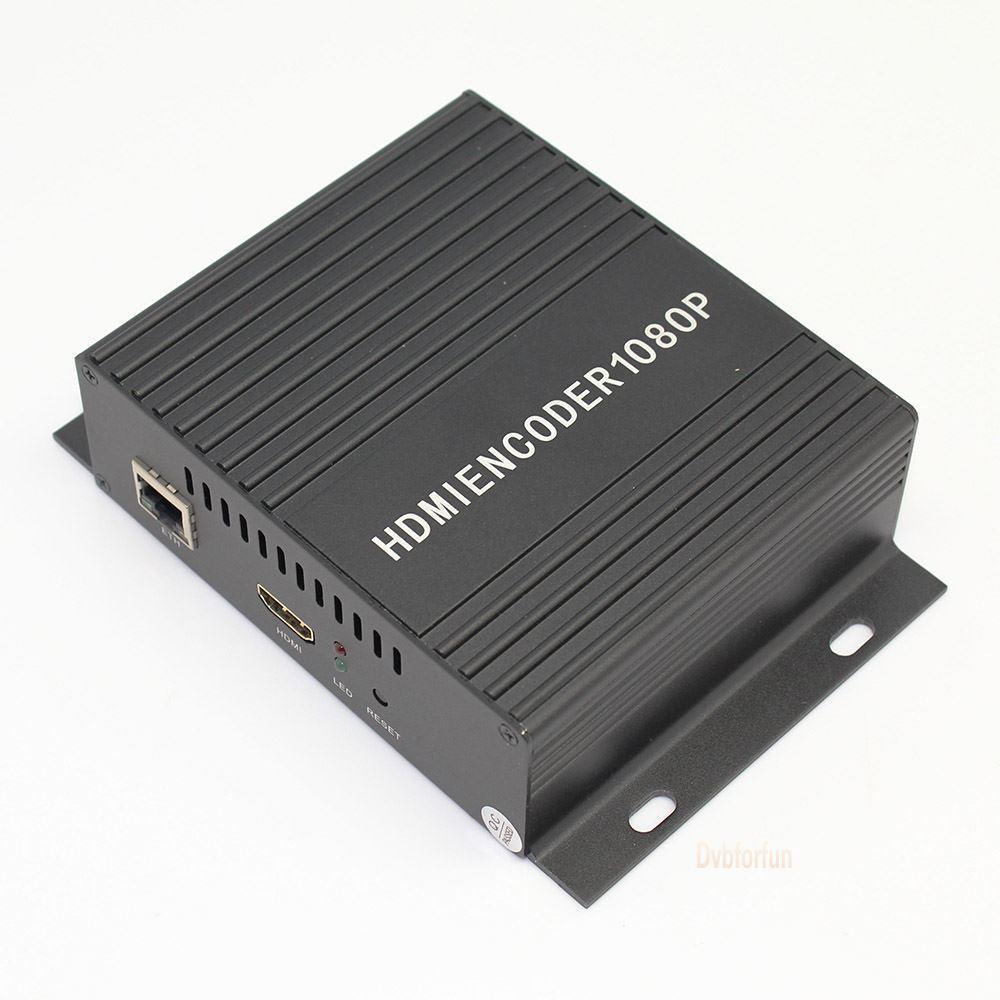

TBS 2216 H.264 HD HDMI professional encoder

TBS 2216 H.264 HD HDMI professional encoder

TBS 2216 H.264 HD HDMI professional encoder

Regular price £195.00 + VAT

£234.00 inc VAT

The TBS2216 is a professional H.264 (MPEG4 AVC) encoder. It has a single HDMI input, the signal is then encoded using H.264 video codec and AAC audio codec with dual stream RJ45 output.

Each output stream can be configured separately allowing for multi bitrate output streams.



TBS2216 HD HDMI encoder is a professional high-definition video coding box, which equipped with 1 HDMI channel input and dual stream RJ45 output. TBS2216 supports MPEG-4 AVC/H.264 High Profile...

in stock

← Previous Product Next Product →

The TBS2216 is a professional H.264 (MPEG4 AVC) encoder. It has a single HDMI input, the signal is then encoded using H.264 video codec and AAC audio codec with dual stream RJ45 output.

Each output stream can be configured separately allowing for multi bitrate output streams.



TBS2216 HD HDMI encoder is a professional high-definition video coding box, which equipped with 1 HDMI channel input and dual stream RJ45 output. TBS2216 supports MPEG-4 AVC/H.264 High Profile code format input and dual stream H.264 format, audio ACC format output.

TBS2216 HD HDMI encoder can be widely used to bellow applications:

1. IPTV;
2. Digital Signage;
3. Video Conference;
4. Replace HD Video Capture Card;
5. Hotel TV system;
6. Live Broadcast;
7. Teaching/Campus Broadcast;
8. Recording System;
9. NVR (Net Video Recorder);

Video:

Input: 1x HDMI (1.3a);
HDMI Resolution: 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below;
Encoding: H.264/AVC Main Profile/High Profile ,Audio AAC;
Data Rate: 0.8Mbps~12Mbps;
Rate Control: CBR/VBR;
GOP Structure: IBBP;
Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening.

Audio:

Encoding: AAC, MP3;
Sampling rate: Auto;
Bit-rate: 32K/48K/64K/96K/128K/160K/192K;
Sampling precision: 24 bit;
Data Rate: 64Kb/s ~ 384Kb/s;

System:

Ethernet/RJ45: 1000 Base-T Ethernet interface;
Protocol: HTTP,UDP,RTSP,RTMP,ONVIF;
Control Interface: WEB;

General Spec:

Size: 170mm*130*30mm
Weight: 0.5kg
Working Temperature: 0~45℃

Packing List:

1. TBS2216 HDMI Video Encoder *1PCS
2. Power DC12V *1PCS
3. Giftbox *1PCS
