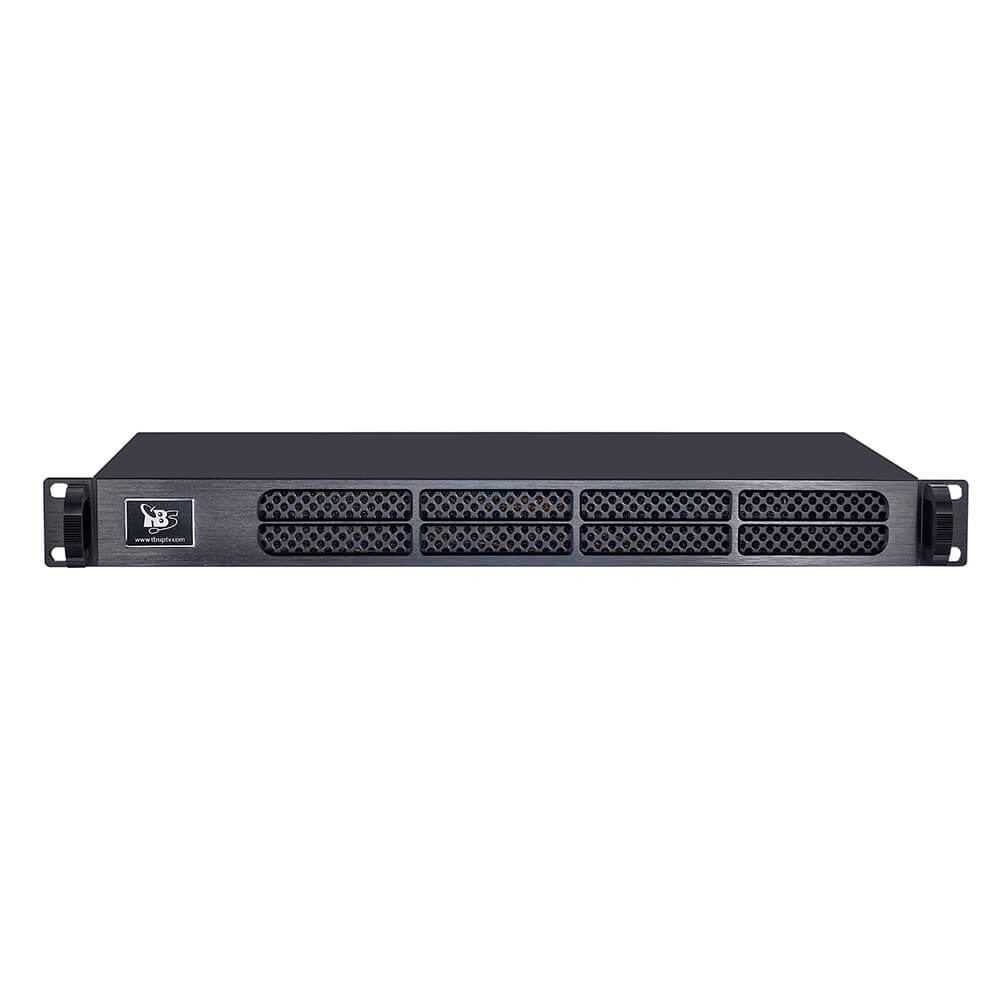

TBS8030 - 16 Channel HDMI H.264 Hardware Encoder

TBS8030 - 16 Channel HDMI H.264 Hardware Encoder

TBS8030 - 16 Channel HDMI H.264 Hardware Encoder

Regular price £2,300.00 + VAT

£2,760.00 inc VAT

The TBS8030 1U 8/16 channels HD H.264 HDMI Encoder is a Multi-channel HD H.264 HDMI encoder, that uses hardware compression, this results in a very stable and high-quality output stream.  The TBS8030 supports up to 16 x channel inputs with 2x Ethernet interface in a 1U chassis.



The TBS8030 HDMI Encoder supports RTP/UDP protocols and displays resolutions up to 1080p, which makes it to be an ideal encoding server for digital data transfer. It...

in stock

The TBS8030 1U 8/16 channels HD H.264 HDMI Encoder is a Multi-channel HD H.264 HDMI encoder, that uses hardware compression, this results in a very stable and high-quality output stream.  The TBS8030 supports up to 16 x channel inputs with 2x Ethernet interface in a 1U chassis.



The TBS8030 HDMI Encoder supports RTP/UDP protocols and displays resolutions up to 1080p, which makes it to be an ideal encoding server for digital data transfer. It supports capture and record HD content in H.264 format from any HDMI source.



The TBS8030 also supports 10 Bit absolute color encoding and has a very low (<60W) power consumption



Model

TBS8030 HDMI Encoder

Input

8x/16x HDMI 1.4a

Ethernet

1xRJ45 100M, 1xRJ45 1Gbps

Output

TS

Output types

UDP/RTP

Recording Mode

Hardware compression, real time mode

Encode Format

H.264

Audio Input

HDMI Embedded audio

OS and Driver

Win7 or above / Linux4.4 or above

Power Consumption

<60W
