TBS2601 HD HDMI/CVBS Video Encoder

TBS2601 HD HDMI/CVBS Video Encoder

TBS2601 HD HDMI/CVBS Video Encoder

Regular price £190.00 + VAT

£228.00 inc VAT

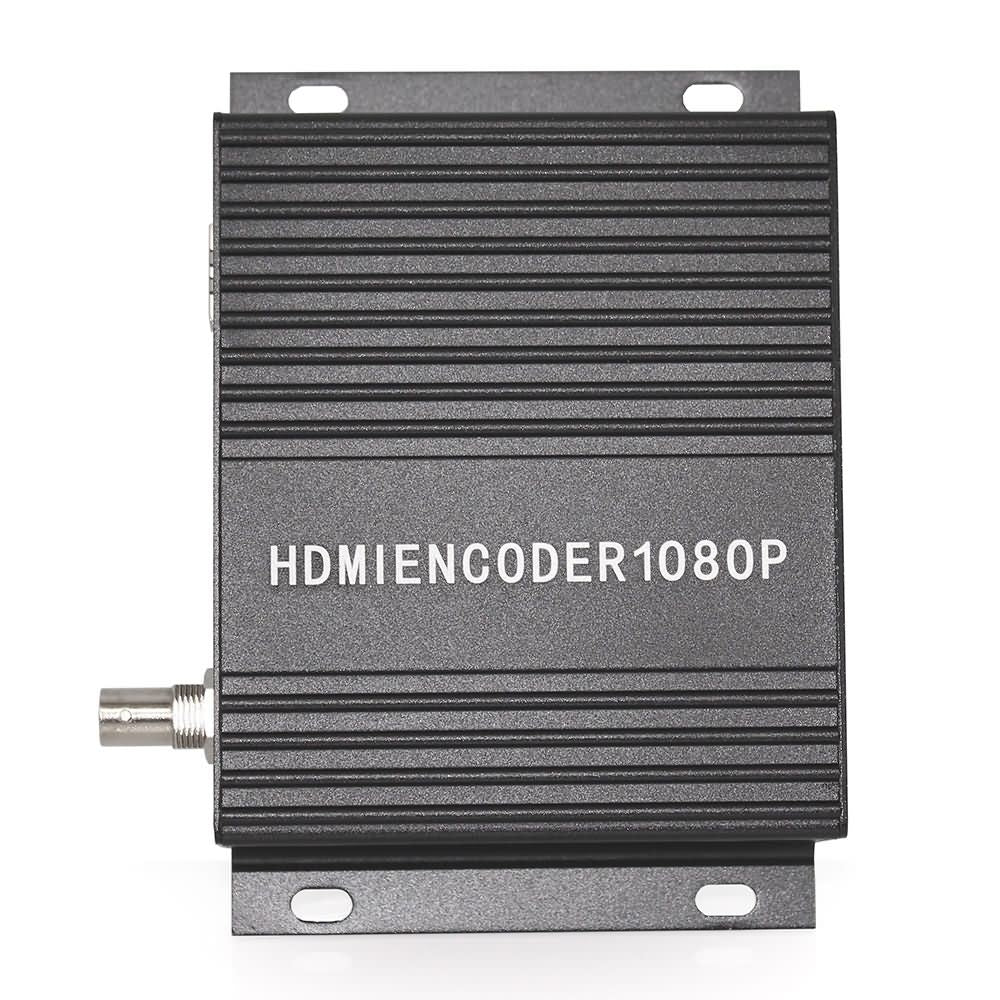

TBS2601 HD HDMI/CVBS Video Encoderr is a professional high-definition video coding box, which equipped with 1 HDMI channel input and 1 CVBS input and maximum quad stream RJ45 output(2 streams from HDMI and 2 streams from CVBS). TBS2601 supports MPEG-4 AVC/H.264 High Profile code format input and quad stream H.264 format, audio ACC format output.

TBS2601 HD HDMI/CVBS encoder can be widely used to bellow IPTV
Digital Signage
Video Conference
Replace HD Video Capture Card
Hotel TV system
Live Broadcast
Teaching/Campus...

in stock

TBS2601 HD HDMI/CVBS Video Encoderr is a professional high-definition video coding box, which equipped with 1 HDMI channel input and 1 CVBS input and maximum quad stream RJ45 output(2 streams from HDMI and 2 streams from CVBS). TBS2601 supports MPEG-4 AVC/H.264 High Profile code format input and quad stream H.264 format, audio ACC format output.

TBS2601 HD HDMI/CVBS encoder can be widely used to bellow IPTV
Digital Signage
Video Conference
Replace HD Video Capture Card
Hotel TV system
Live Broadcast
Teaching/Campus Broadcast
Recording System
NVR (Net Video Recorder)

Video
Input: 1x HDMI (1.3a)
1x CVBS
HDMI Resolution: 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below
Encoding: H.264/AVC Main Profile/High Profile ,Audio AAC
Data Rate: 16KBIT/S~12MBIT/S
Rate Control: CBR/VBR
GOP Structure: IBBP
Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening

Audio
Encoding: AAC, MP3
Sampling rate: Auto
Bit-rate: 32K/48K/64K/96K/128K/160K/192K
Samppng precision: 24 bit
Data Rate: 64Kb/s ~ 384Kb/s

System
Ethernet/RJ45: 1000 Base-T Ethernet interface;
Protocol: HTTP, UDP, RTSP, RTMP;
Control Interface: WEB;

General Spec
Size: 120mm*105*40mm
Weight: 0.25kg
Working Temperature: 0~45℃

Packing List
TBS2601 HD HDMI/CVBS Video Encoder *1PCS
Power DC12V *1PCS
