LinkPi TinyENC1 by EasyStream - Single input 1080p HDMI Encoder

LinkPi TinyENC1 by EasyStream - Single input 1080p HDMI Encoder

LinkPi TinyENC1 by EasyStream - Single input 1080p HDMI Encoder

Regular price £89.00 + VAT

£106.80 inc VAT

The LinkPi TinyENC1 is a single channel HDMI encoder capable of encoding an HDMI input up to 1080p60 using either H.264 or H.265 with a maximum output of 1080p30.

The TinyENC1 is the smallest HDMI encoder on the market, measuring just 58 x 62 x 16mm with a power consumption of less than 200mA.

Don't let the size put you off, the TinyENC1 has a dual stream output and can push a...

Contact us

The LinkPi TinyENC1 is a single channel HDMI encoder capable of encoding an HDMI input up to 1080p60 using either H.264 or H.265 with a maximum output of 1080p30.

The TinyENC1 is the smallest HDMI encoder on the market, measuring just 58 x 62 x 16mm with a power consumption of less than 200mA.

Don't let the size put you off, the TinyENC1 has a dual stream output and can push a live stream to multiple RTMP servers at once, allowing you to go live to all of your social media platforms without the need of an additional streaming server.

HD input Multi-protocol live broadcast Multi-platform live broadcast High compression rate Advanced function 1080P60 rtsp/rtmp/http/udp

Multi-channel concurrent push stream H.265+smartP system update, group management interface.

Core performance Main chip: Hi3516EV300 CPU : ARM Cortex-A7@900MHz 32KB I-Cache, 32KB D-Cache Memory: 128MB DDR3 FLASH: 128MB


Core performance

main chip: Hi3516EV300
CPU: ARM Cortex-A7@900MHz
32KB I-Cache, 32KB D-Cache
Memory: 128MB DDR3
FLASH: 128MB SPI Nand Flash

Video parameters

HDMI input: HDMI 1.4 supports up to 1080P@60fps
Resolution: 1080P, 720P, 1080i, 720i, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480
Encoding format: H.264 Baseline profile
H.264 Main profile
H.264 High profile
H.265 Main profile
MJPEG/JPEG Baseline
Decoding format: H264, H265, MJPEG
Encoding Resolution: Main: 1080P, 720P, 360P
Sub: 720P, 360P
Frame rate: 1~30 adjustable
Multiple reference frames: Support SmartP, DualP
Maximum bit rate: 60Mbps
Rate Control: CBR/VBR/AVBR/FIXQP/QPMAP

audio parameters

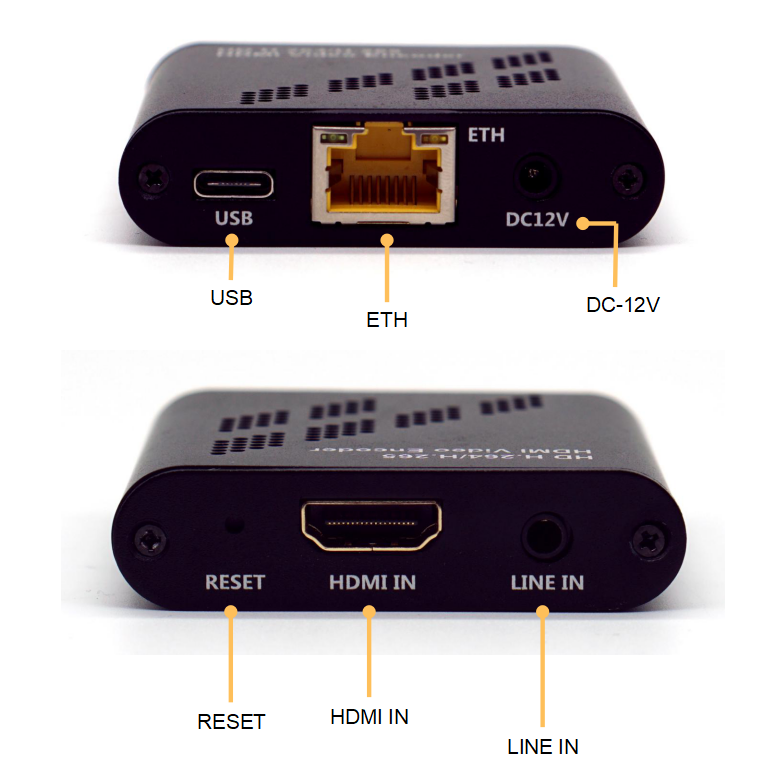

input interface: HDMI, 3.5mm Line-In, audio can be used simultaneously
Sampling Rate: 48K, 44.1K, 32K, 16K, 8K
Encoding format: AAC, MP3, MPEG2, PMCA, PMCU

Network parameters

Wired interface: 10/100M RJ45 network port
Transfer Protocol: RTSP, RTMP, HTTP, HLS, UDP, Unicast, Multicast

Basic parameters

power supply: DC 12V 1A
Power consumption: <4W
Operating temperature: 0~70℃
size: 58×62×16 (mm length x width x height)

Software function

basic skills: WEB configuration, parameter hot update, firmware upgrade, network setting, password management
