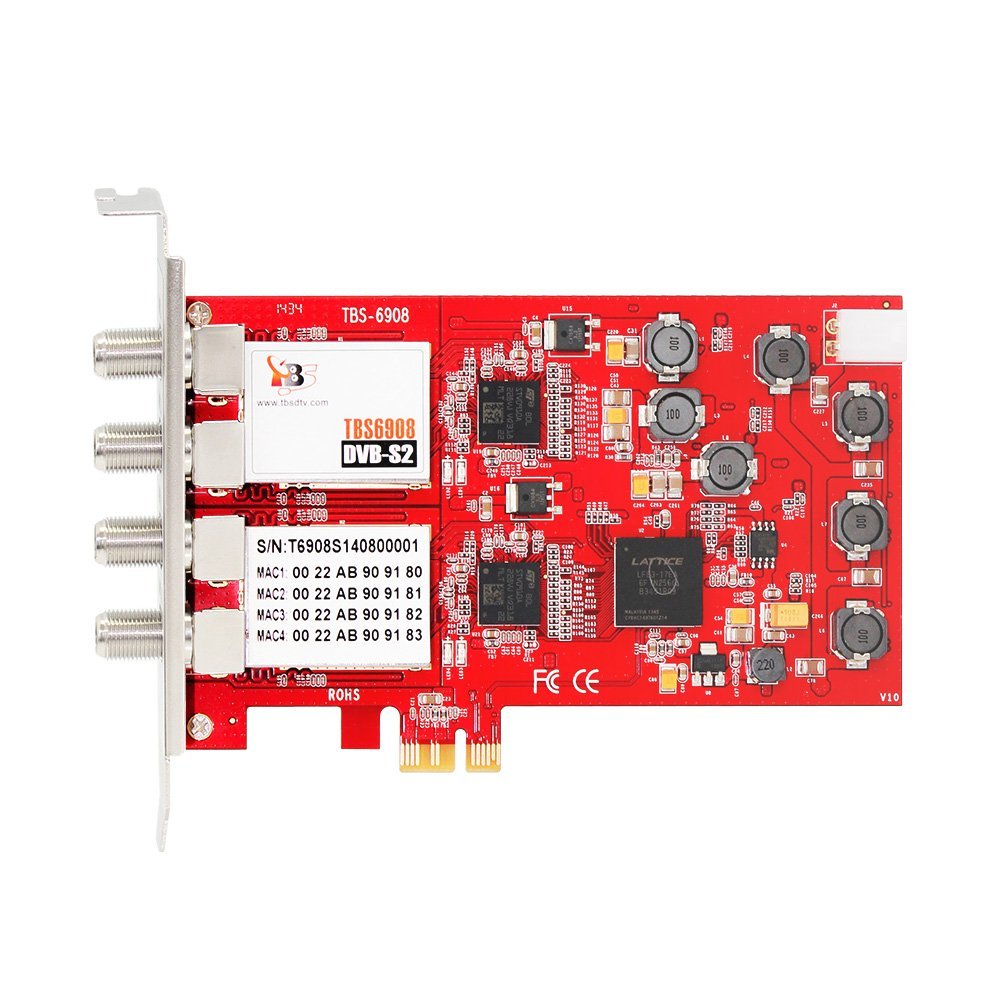

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card

Regular price £345.00 + VAT

£414.00 inc VAT

TBS6908 is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6908 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, Multi Input Stream, 16APSK,32APSK,Generic Stream Mode , which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driver up to the latest kernel 3.X are ready.

TBS6908 Professional DVB-S2 Quad...

in stock

← Previous Product Next Product →

TBS6908 is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6908 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, Multi Input Stream, 16APSK,32APSK,Generic Stream Mode , which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driver up to the latest kernel 3.X are ready.

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card, built with the highest industry standard, with its rock reliability is the device that any personal enthusiasts or engineers in digital satellite TV industry dream to have. The applying of an unique DVB-S2 demodulator chipset makes it possible to receive special streams broadcasted with ACM, VCM, Multi Input Stream, 16APSK,32APSK or Generic Stream Mode.


Main Features:
EUMETCast Compatibility
Quad tuner DVB-S2/S transponders receiving
CCM, VCM, ACM and Multi Input Stream support
Generic stream mode Support
Up to 190 Mbit/s channel bit rate capture
Wide range symbol rates support from 1Msps to 45Msps
High-speed data download via satellite
Unicable/one cable compatible
Blindscan
High reliability

Applications:
Satellite feed hunt
Satellite data download
Lock of special transponders

Receiving frequency: 950~2150 MHz tuning range
Input level: -69~-23dBm
Quad channels DVB-S2/DVB-S 8PSK QPSK 16APSK 32APSK ACM/VCM Demodulator

Symbol rate:
-Maximum symbol DVB-S2 rate limitations (Msymb/s)

Msymb/s Demod LDPC Single Dual
QPSK 67.5 135 67.5 67.5
8PSK 67.5 90 67.5 45
16APSK 67.5 67.5 67.5 33.7
32APSK 67.5 54 54 27


-DVB-S
QPSK+1/2, 2/3, 3/4, 5/6, 7/8
Support Data Burst & Tone Burst
Support DiSEqC2.X and Motor
Dimension: 145*92.3mm (length x height)
Max Power consumption: 32W

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Pentium 4 2.0 GHz, Pentium M 1.3 GHz
For HDTV: 2.6 GHz multi core processor
Hard disk with min. 1 GB free capacity
Sound and graphics card with support for DirectX 9 or higher
Available PCI Express x1, x4, x8 or x16 slot
CD/DVD drive for software installation


Package Contents:
1 x TBS6908
1 x DC line
