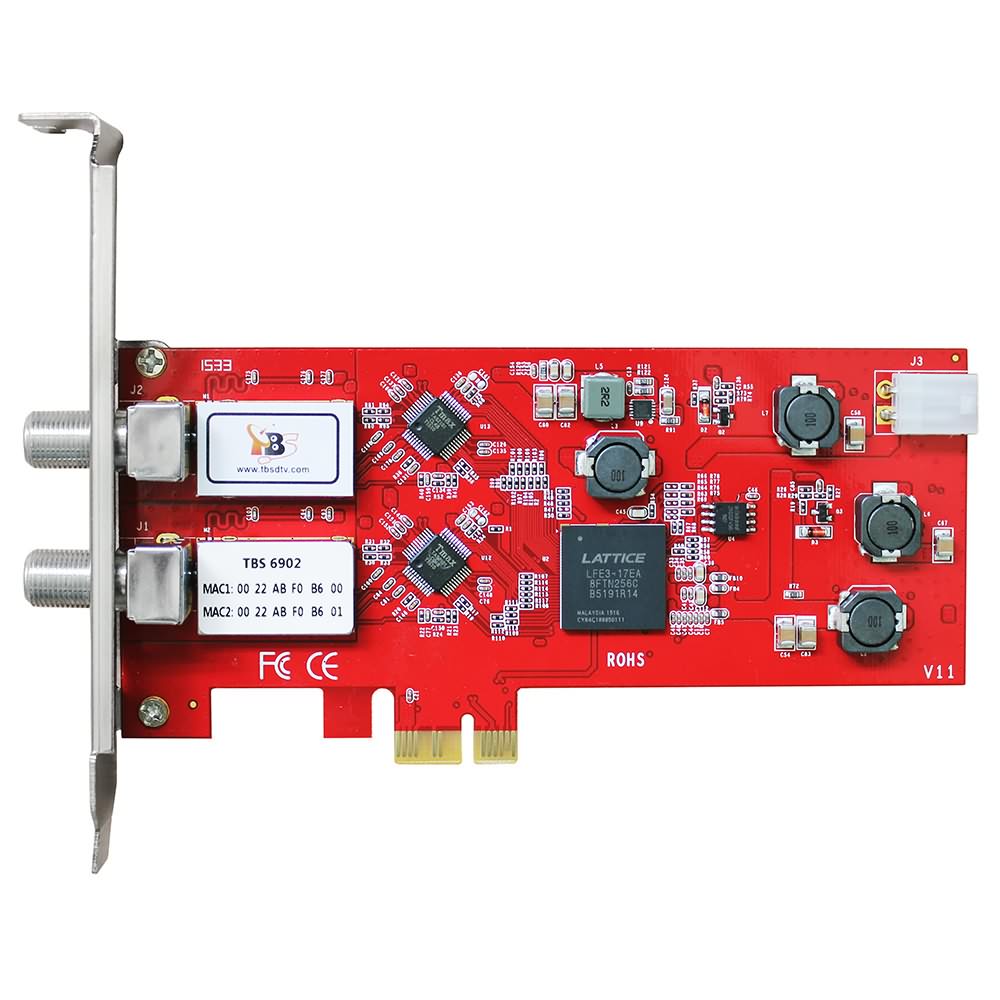

TBS6902 DVB-S2 Dual Tuner PCIe Card

TBS6902 DVB-S2 Dual Tuner PCIe Card

TBS6902 DVB-S2 Dual Tuner PCIe Card

Regular price £65.83 + VAT

£79.00 inc VAT

TBS6902 PCI-E DVB-S2 Dual Tuner TV card is a PCI Express interface digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. With two tuners, the TBS6902 enables you to watch TV channel from one transponder/satellite while recording another channel from another transponder/ satellite at the same time. This dual tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Benefits
DVB-S2/DVB-S SD or...

in stock

← Previous Product Next Product →

TBS6902 PCI-E DVB-S2 Dual Tuner TV card is a PCI Express interface digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. With two tuners, the TBS6902 enables you to watch TV channel from one transponder/satellite while recording another channel from another transponder/ satellite at the same time. This dual tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Benefits
DVB-S2/DVB-S SD or HD TV receiving
Watch satellite TV & listen to radio on PC
Dual tuner for recording two different channels/transponders
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite

Applications
Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications:
Frequency range: 950~2150 MHz
Signal Level: -85~-10dB
Symbol rate:
DVB-S QPSK 1-45Msps
DVB-S2 QPSK/8PSK 1-45Msps
Automatic acquisition range : ±10MHz
Automatic pilot detection:
DVB-S2 CCM:
    QPSK+1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    8PSK+3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    16APSK+/3, 3/4, 4/5, 5/6, 8/9, 9/10
    32APSK+3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
    QPSK+1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC support: 1.0, 1.2, 2.x
Dimension: 140*68.8mm (length x height)
Max Power consumption: 15W

Connections
PCI Express
2x LNB IN

System Requirements
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB

Package Contents
1 x TBS6902
1x Low profile bracket
1x DC line
