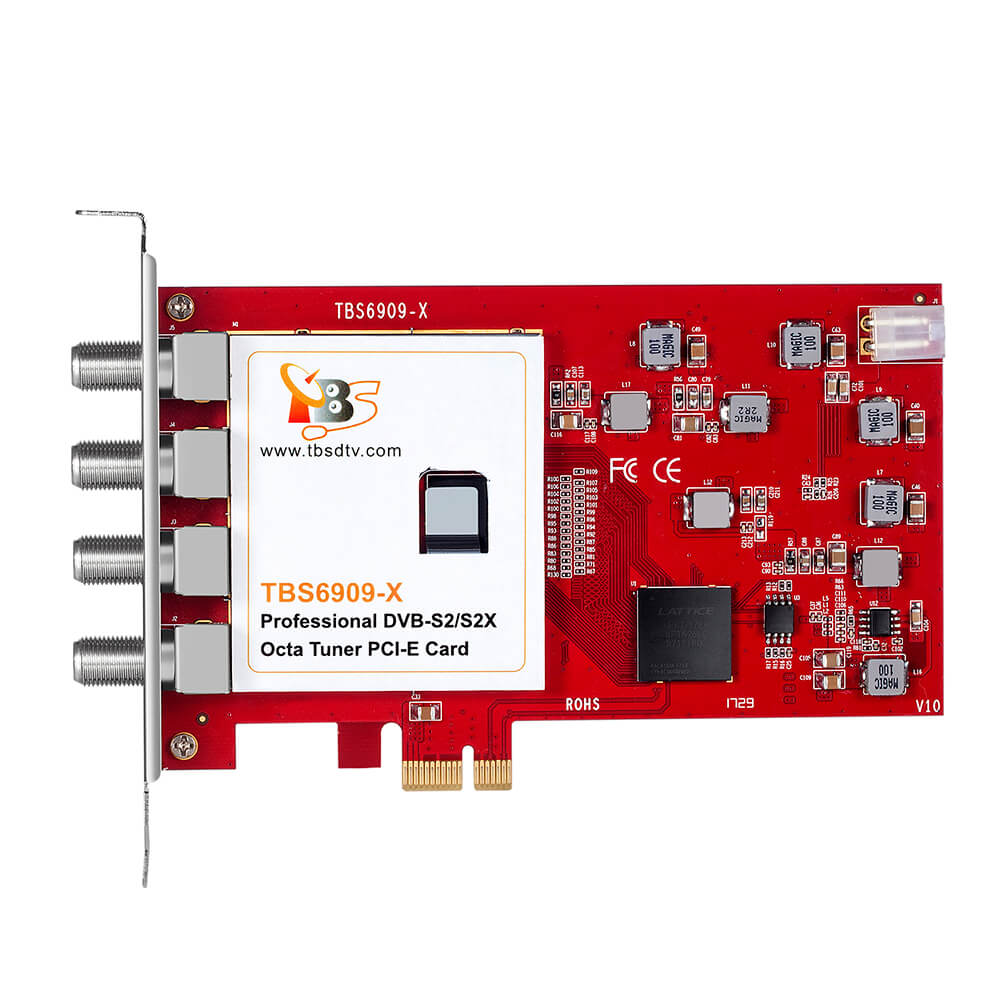

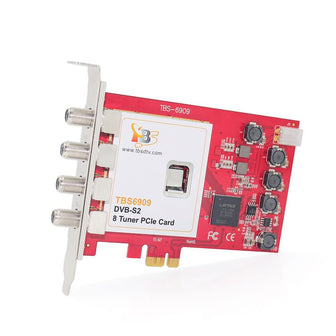

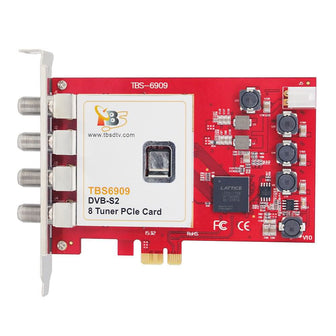

TBS6909-X is a powerful DVB-S2X/S2 and annex M octa tuner card with PCI Express interface, it is capable of receiving SD/HD digital TV channels from 8 different satellite transponders simultaneously, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.

Main Features:

• Support Octa DVB-S/S2/S2X
• Fast scanning functionality for all media
• Support VCM, ACM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
• Support wide band

Applications:

• Data receiving
• IPTV streaming
• Media monitoring
• Digital content distribution

Model TBS6909-X
Connection PCI-express
4x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK 2/3, 32/45
VCM Yes
ACM Yes
Power consumption
Input/ Power: 12V/7~15W
temperature 0°~ 60°
Other information:
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Dimension:
TV tuner card size 145*92*1.6mm
Gift Box Size 200*130*30mm
Weight 400g
Package Contents 1* TBS6909-X
1* Power cable
