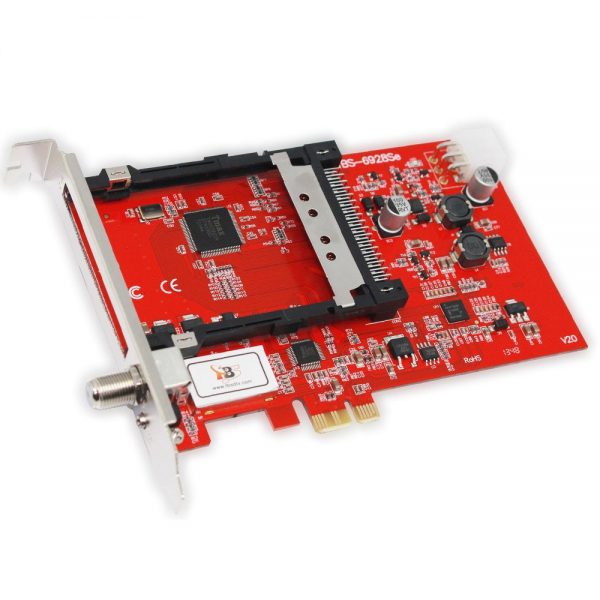

TBS6928SE PCIe DVB-S2 TV Tuner Card with CI
TBS6928SE PCIe DVB-S2 TV Tuner Card with CI
-
TBS6928SE, the successor of TBS6928, is a PCI Express (PCIe) interface digital satellite TV Tuner card for watching and recording digital satellite TV on PC. With integrated CI slot, it can be used for watching Free to Air(FTA) TV and Pay TV(with correct CAM and subscription smartcard equipped). Both Windows BDA driver and Linux driver up to the latest kernel are provided. The unique TBS MCE tool makes it possible to read CAM/Smartcard on Windows7 Media Center, thus your satellite subscription TV can be watched/recorded on Windows7 Media Center. On Linux platform, you can also watch Pay TV by using correct software. TBS6928SE is compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV,VDR and many other popular software.
TBS6928SE PCIe DVB-S2 TV Tuner CI card is the advanced satellite TV tuner built with Common Interface support, which allows insertion of CAM and smartcard for Pay TV. It uses advanced DVB-S2 RF and demodulator chipset and it’s built with the highest quality components such as tantalum capacitors. It’s good choice especially for IPTV server streaming Pay TV contents. By using appropriate software, e.g. MediaPortal and its plugins, you can stream satellite TV contents to your iPhone, iPad or iPod. The built in hardware blindscan capability allows you to scan satellite programs without knowing exact transponder details, this is especially useful for hunting unknown satellite feeds.
Main Features:
Watch satellite TV & listen to radio on PC
DVB-S2/DVB-S SD or HD TV receiving
Broadband internet via satellite *
High-speed data download via satellite *
Real time and scheduled program Recording(PVR)
Time shifting to pause live TV
Unicable/One cable compatible
Common Interface (CI) Support
Blindscan
High reliability
*Depends on service provider.
Applications:
HTPC
IPTV Streaming Server
Specifications:
Receiving frequency: 950~2150 MHz tuning range
Input level: -69~-23dBm
DVB-S2/DVB-S DIRECTV 8PSK QPSK demodulator
Symbol rate:
DVB-S QPSK 1~45Msps
DVB-S2 QPSK/8PSK 1~45Msps
Carrier capture range: ±10MHz
-DVB-S2 CCM
QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10
-DVB-S
QPSK+1/2, 2/3, 3/4, 5/6, 7/8
Support data burst & tone burst
Support DiSEqC2.X and motor
Single CI slot
System Requirements:
Windows 2000/XP/Vista/7/8/10 or Linux
DirectX9.0 or later Version
Available PCI Express x1,x4, x8 or x16 slot
Satellite dish and LNB
For DVB-S:
1GHz CPU or above
256MB RAM or above
Graphic card with at least 16MB RAM
For DVB-S2 HDTV:
Dualcore CPU
1GB RAM or above
Graphic card with at least 64MB RAM
Package Contents:
1 x TBS6928SE
1 x Remote control
1 x IR receiver
1 x DC line
1 x Software CD
