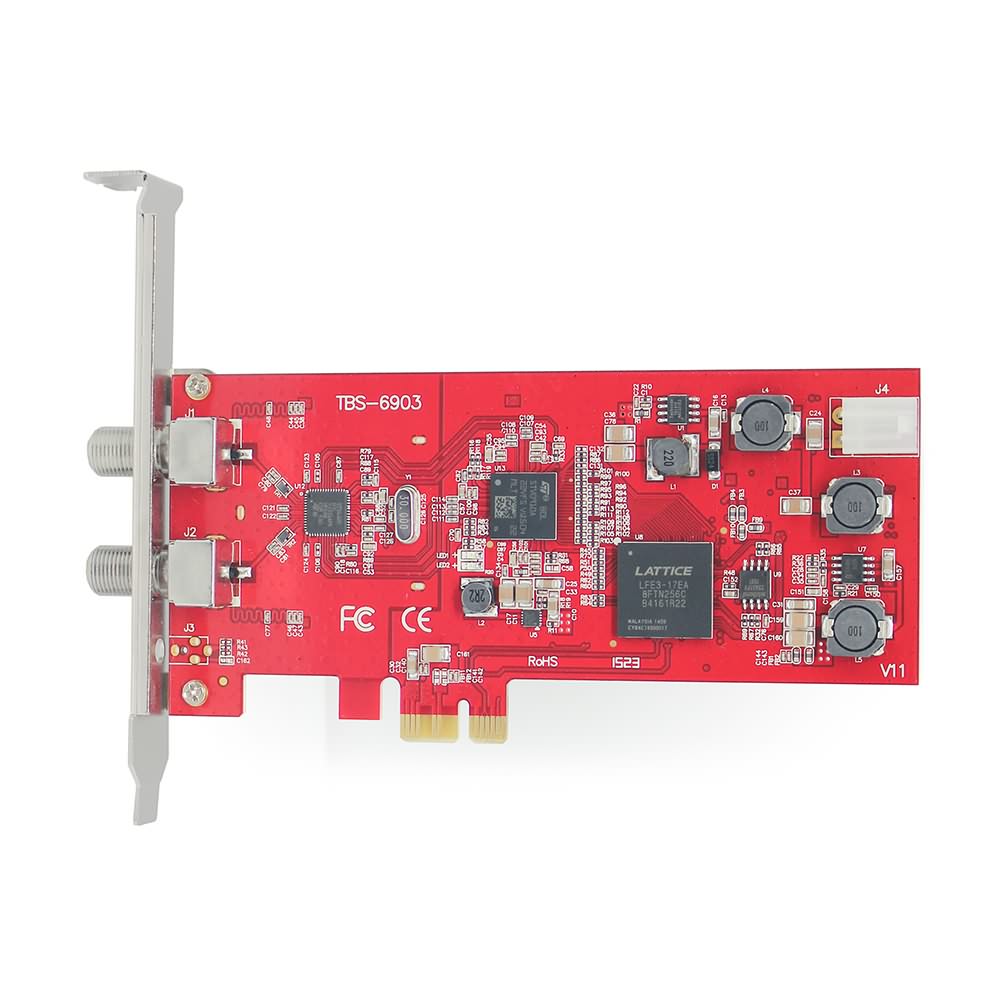

TBS6903 Eumetsat - Eumetcast DVB-S2 receiving device - PCIe
TBS6903 Eumetsat - Eumetcast DVB-S2 receiving device - PCIe
The TBS 6903 Eumetcast DVB-S2 is certified for use with Eumetcast, EUMETSAT’s primary dissemination mechanism for the near real-time delivery of satellite data and products.
EUMETCast is a multi-service dissemination system based on multicast technology. It uses commercial telecommunication geostationary satellites using DVB standards and research networks to multi-cast files (data and products) to a wide user community. EUMETCast also delivers a range of third-party products.
In order to use Eumetcast you will need first need to register with EUMETCast to obtain the Client Software and EKU, data processing software will also be required. These software applications are commercially available — for further information, contact a relevant manufacturer or EUMETSAT.
Specifications:
Frequency range: 950~2150 MHz
Dual channels DVB-S2/S 8PSK QPSK 16APSK 32APSK ACM/VCM
Demodulator
Symbol rate:
Maximum symbol DVB-S2 rate limitations (Msymb/s)
Msymb/s | Demod | LDPC | Single | Dual |
QPSK | 67.5 | 135 | 67.5 | 67.5 |
8PSK | 67.5 | 90 | 67.5 | 45 |
16APSK | 67.5 | 67.5 | 67.5 | 33.7 |
32APSK | 67.5 | 54 | 54 | 27 |
DVB-S QPSK +1/2,2/3,3/4,5/6,7/8
Support Data Burst & Tone Burst
Support DiSEqC2.X and Motor
Dimension: 140*68.7mm (length x height)
Max Power consumption: 20W
System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB
Package Contents:
1 x TBS6903
1 x Low profile bracket
1 x DC line
