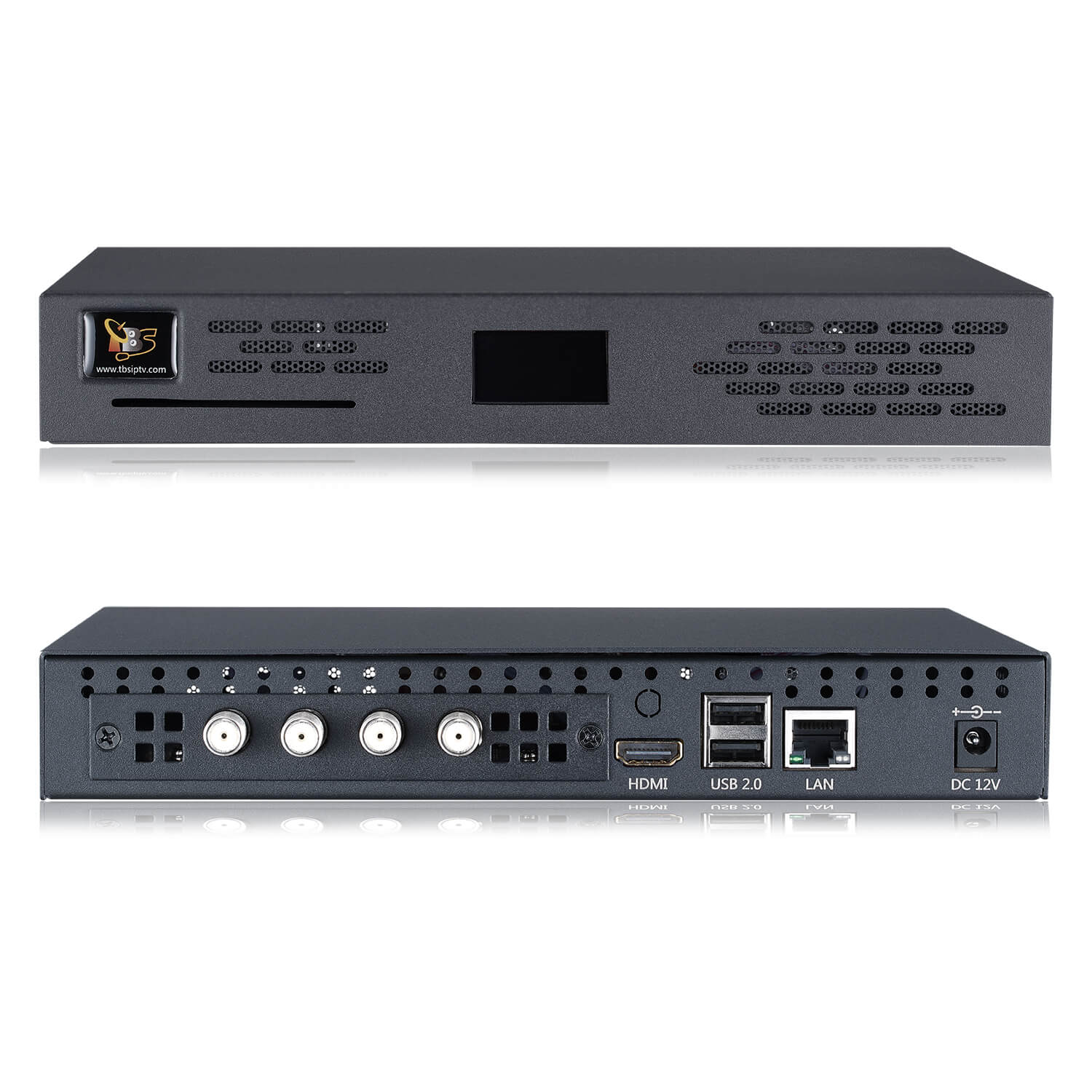

TBS2925 MOI Smart Box small IPTV streaming server
TBS2925 MOI Smart Box small IPTV streaming server
TBS2925 MOI Smart Box is a professional IPTV headend streaming server, which is mainly used to transfer DVB TV channels to data format and deliver over the network as video streams. It is equipped with 1 or 2 PCIe slots, which can be loaded with 1pcs or 2pcs DVB TV Tuner PCIe card to capture live DVB channels from up to 8 frequencies. The 1Gb network port allows MOI Smart box to deliver about 800M video streams over the network simultaneously.
| Basic server spec: | |
| Processor | BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| RAM | 4GB LPDDR4 |
| Flash | 16GB eMMC |
| LAN | 1Gb onboard Ethernet |
| USB2.0 | 2 * USB2.0 port |
| HDMI | 1 * HDMI2.0 Out |
| PCIe Slot |
Support 450M bandwidth at most. |
| CA Reader slot | Optional. If you need the CA reader slot in the server, please contact us. |
| UART | 1 x LCD Display |
| PSU |
|
| Available inputs: | |
| Live channels input | DVB-S/S2/S2X, DVB-T/T2, DVB-C, ATSC-T, ISDB-T from Tuner PCIe cards |
| HDMI video input | HDMI encoding PCIe cards |
| ASI input | DVB-ASI capture PCIe cards |
| Video streaming: | |
| Free software | Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba |
| Protocol | UDP, HTTP, SRT |
| Common information: | |
| Working Environment |
|
| Dimensions(chassis) |
|
