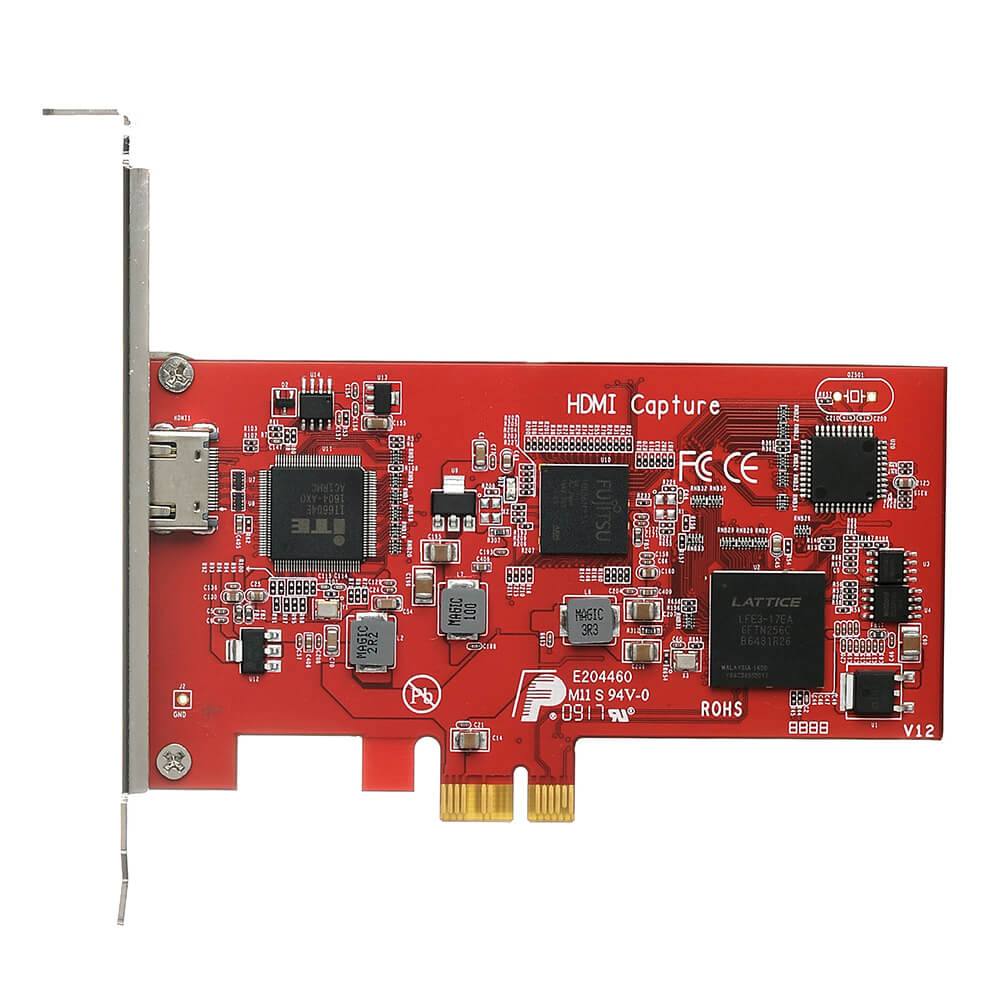

TBS6301 - 1 Input PCIe HDMI HD Capture card

TBS6301 - 1 Input PCIe HDMI HD Capture card

TBS6301 - 1 Input PCIe HDMI HD Capture card

Regular price $233.00 + VAT

$279.60 inc VAT

The TBS6301 HDMI PCIe video capture card has a single HDMI (v1.4) input. It supports video and audio capture and playback up to a 1080P full HD resolution.

The TBS6301 can be connected to any device with HDMI 1.4 output, the output is then be encoded via an H.264 hardware encoder and streamed via multicast or unicast over a standard IP network or simply captured directly to a hard drive.

The TBS6301 is ideal for...

Contact us

The TBS6301 HDMI PCIe video capture card has a single HDMI (v1.4) input. It supports video and audio capture and playback up to a 1080P full HD resolution.

The TBS6301 can be connected to any device with HDMI 1.4 output, the output is then be encoded via an H.264 hardware encoder and streamed via multicast or unicast over a standard IP network or simply captured directly to a hard drive.

The TBS6301 is ideal for capturing live HDMI streams from a set top box or satellite receiver, as well as for capturing game play from games console.

Model TBS6301
Interface PCI-E x1
Input HDMI 1.4a
Recording mode Hardware compression, real time mode
Display video format YV12,NV12,YUY2,RGB24,RGB32
Video format H.264
Audio Input HDMI Embedded audio
Color Space YUYV, UYVY, I420, RGB 24 Bits, RGB 32 Bits
Image Mirror Horizontal; vertical
Update Firmware could be updated
OS and Driver Windows XP / Vista / Windows 7 /Windows 8 / Windows 10/Linux
Power 12V/6W
temperature 0~60
Dimension 18.5*16.5*3.5
Weight 300g



HDMI input Video format support:

Horizontal size Vertical size rate I (Interleave)or P (Progressive)
1920 1080 60/59.94 I
1920 1080 50 I
1280 720 60/59.94 P
1280 720 50 P
720 483(480) 59.94 P
720 576 50 P
1920 1080 30/29.97 P
1920 1080 24/23.98 P
1280 720 30/29.97 P
1280 720 24/23.98 P
