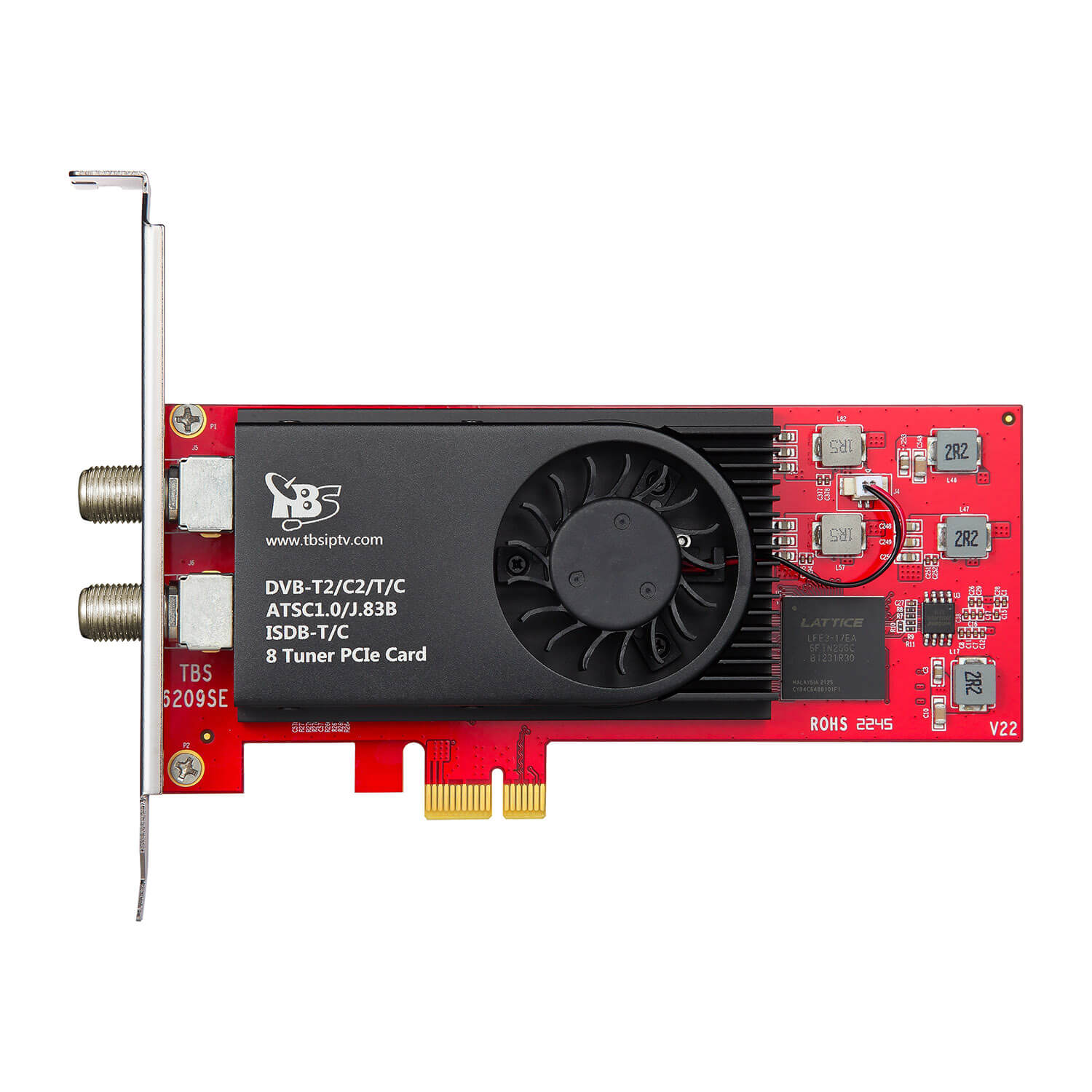

TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Octa TV Tuner Card

TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Octa TV Tuner Card

TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Octa TV Tuner Card

Regular price £285.00 + VAT

£342.00 inc VAT

TBS6209se is a DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card with PCI-Express interface, it can be used for watching eight different channels from eight different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.

TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209 is considered as a professional TV tuner for industrial-level users. When the PCIe slots in...

in stock

← Previous Product Next Product →

TBS6209se is a DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card with PCI-Express interface, it can be used for watching eight different channels from eight different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.

TBS6209se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209 is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6209se enables you to receive more channels than the usual dual or quad TV tuner. Thus, it is highly recommended for broadcasting system.

Main Features

  • DVB-T2/C2/T/C(J.83A/B/C),ISDB-T/C ,ATSC1.0. SD or HD TV receiving
  • Octa channel receiving simultaneously
  • High-definition video, real-Time and scheduled video recording
  • High sensitivity DVB-T2 octa Tuner for the best digital TV reception
  • Windows BDA driver and Linux Driver ready
DVB-T2 and T2-Lite Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals
16, 32, 64, 128 and 256QAM modulations
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6
DVB-T 6, 7 and 8MHz channel bandwidths
2 and 8K FFT
QPSK, 16 and 64QAM
1/2, 2/3, 3/4, 5/6 and 7/8 code rates
DVB-C2 6 and 8MHz channel bandwidths
1/64 and 1/128 guard intervals
16, 64, 256, 1024, 4096 QAM
2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates
DVB-C 1.7 to 7.2 Msym/s
16, 32, 64, 128 and 256QAM
0.15 roll-off factor
ISDB-T 6, 7 and 8MHz bandwidth
2, 4 and 8K FFT
1/32, 1/16, 1/8 and 1/4 guard intervals
QPSK, 16QAM and 64QAM
ISDB-C 5.274 Msym/s
0.13 roll-off factor
64 and 256QAM
TSMF (Transport Streams Multiplexing Frame)
J.83B (ITU-T J.83 v3.0 Annex B) 5.056941, 5.360537, 5.6 Msym/s
0.18 and 0.12 roll-off factor
64 and 256QAM
ATSC1.0 6MHz channel bandwidths
8VSB modulation
2/3 code rate
Power consumption
Input/ Power 12V/14W
temperature 0~60℃
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0.
Dimension
TV tuner card size 104.5mm * 150mm
Net weight 190g
Gift Box Size 17.7 * 16 * 3CM
Weight 280g
Package Contents 1 x TBS6209se
1x DC line
1x F Connector
EAN 6947229062096
