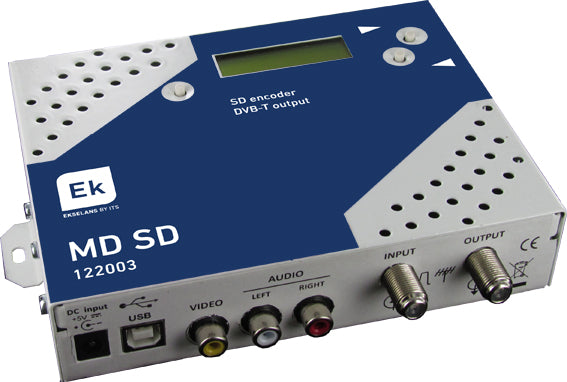

DVBT Modulator (SD)

DVBT Modulator (SD)

DVBT Modulator (SD)

Regular price £267.14 + VAT

£320.57 inc VAT

COFDM Modulator - DVBT

Convert analogue input to MPEG 2 DVBT output.

Specification

Code 122003
Video Inputs CVBS
Resolution mode PAL (720x576 / NTSC /720x480)
Compresion MPEG 2
Audio Inputs Input Audio Stereo x 2/ 0,5-2,5 Vpp
Sample rate 48 KHz
Compression MPEG1,LAYER II
DVB Processing Table insertion PAT, PNT, SDT, NIT

Configuration
Program name, SID, LCN, NETWORK
NAME, TSD, ONID, NID, VERSION NIT,
LCN, PID, PMT, PID VIDEO, PID AUDIO
DVB-T output Output frequency / level 47-862 MHz / >80 dBµV.
ADJUSTABLE 0-29 dB
Constellation - FEC QPSK/16QAM/64QAM -...

Contact us

COFDM Modulator - DVBT

Convert analogue input to MPEG 2 DVBT output.

Code 122003
Video Inputs CVBS
Resolution mode PAL (720x576 / NTSC /720x480)
Compresion MPEG 2
Audio Inputs Input Audio Stereo x 2/ 0,5-2,5 Vpp
Sample rate 48 KHz
Compression MPEG1,LAYER II
DVB Processing Table insertion PAT, PNT, SDT, NIT

Configuration
Program name, SID, LCN, NETWORK
NAME, TSD, ONID, NID, VERSION NIT,
LCN, PID, PMT, PID VIDEO, PID AUDIO
DVB-T output Output frequency / level 47-862 MHz / >80 dBµV.
ADJUSTABLE 0-29 dB
Constellation - FEC QPSK/16QAM/64QAM - 1/2, 2/3, 3/4,
5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32
MER mode 2K/8K - 35 dB
Mains Plug DC 2.1 mm +5V
Consumption 10 Watts
Dimension L x W x H 170 x 130 x 35 mm
Weight 0,6 kg
