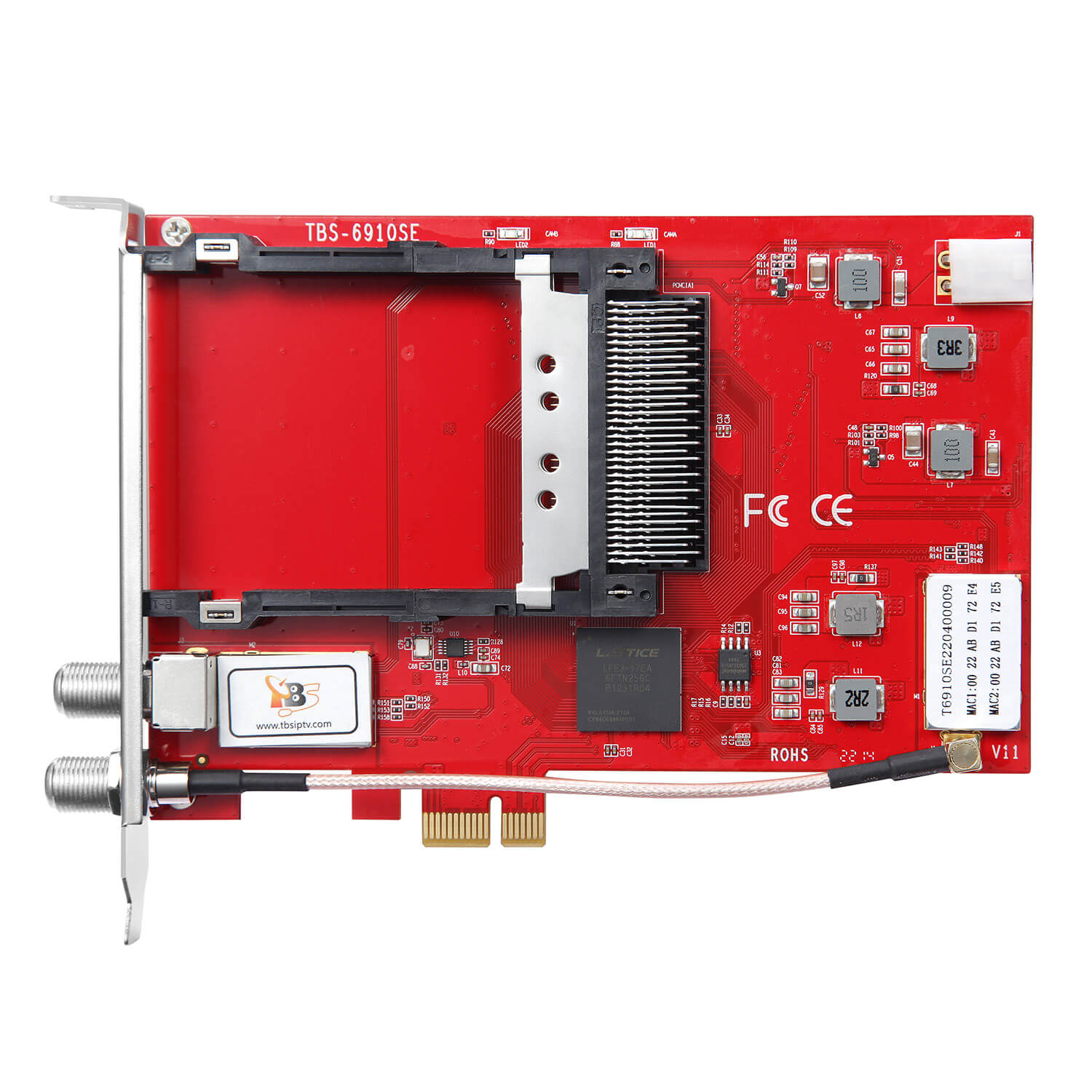

TBS6910SE DVB-S2X Dual Tuner Dual CI PCIe Card
TBS6910SE DVB-S2X Dual Tuner Dual CI PCIe Card
TBS6910SE DVB-S2X/S2 Dual Tuner Dual CI PCIe Card is a twin tuner digital satellite TV for watching or recording two different channels from two different frequencies simultaneously, it also supports VCM, which is considered as a professional TV tuner for industrial-level users.
You can use one tuner to watch TV channel while using another tuner to record/watch another channel from another transponder/ satellite at same time.
TBS6910SE is integrated with two CI slots, inserting the correct CAM and subscription smartcard into the CI slot makes it possible to watch encrypted pay TV.
Características principales
- Support dual DVB-S/S2/S2X
- Funcionalidad de escaneo rápido para todos los medios
- Supports VCM and multi stream
- Descarga de datos de alta velocidad vía satélite
- Ver y grabar programas de televisión por satélite/radio en el PC
Aplicaciones
- Recepción de datos
- Monitorización de medios
- Distribución de contenido digital
| Modelo | TBS6910SE | |
| Connection | PCI-express | |
| 2x RF in | ||
| 2x CI slot | ||
| DVB-S/S2/S2X | ||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK (8APSK-L) | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK(32APSK-L) | 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45, 11/15, 7/9,(2/3) | |
| VCM | Sí | |
| Symbol rate | 1 ~ 45Msymb/s | |
| Consumo de energía | ||
| Entrada/potencia: | 8 ~ 12W | |
| Temperatura | 0° ~ 78° | |
| Requisitos del sistema | Windows XP/Vista/7/8/10, Linux | |
| Ranura PCI Express x1, x4, x8 o x16 disponible | ||
| Dimension: | ||
| Tamaño de la tarjeta de sintonizador de TV | 104.5mm * 150mm | |
| Tamaño de la caja de regalo | 200 * 130 * 30mm | |
| Peso | 300g | |
| Contenido del paquete | 1 * TBS6910SE | |
| 1 * Power cable | ||
