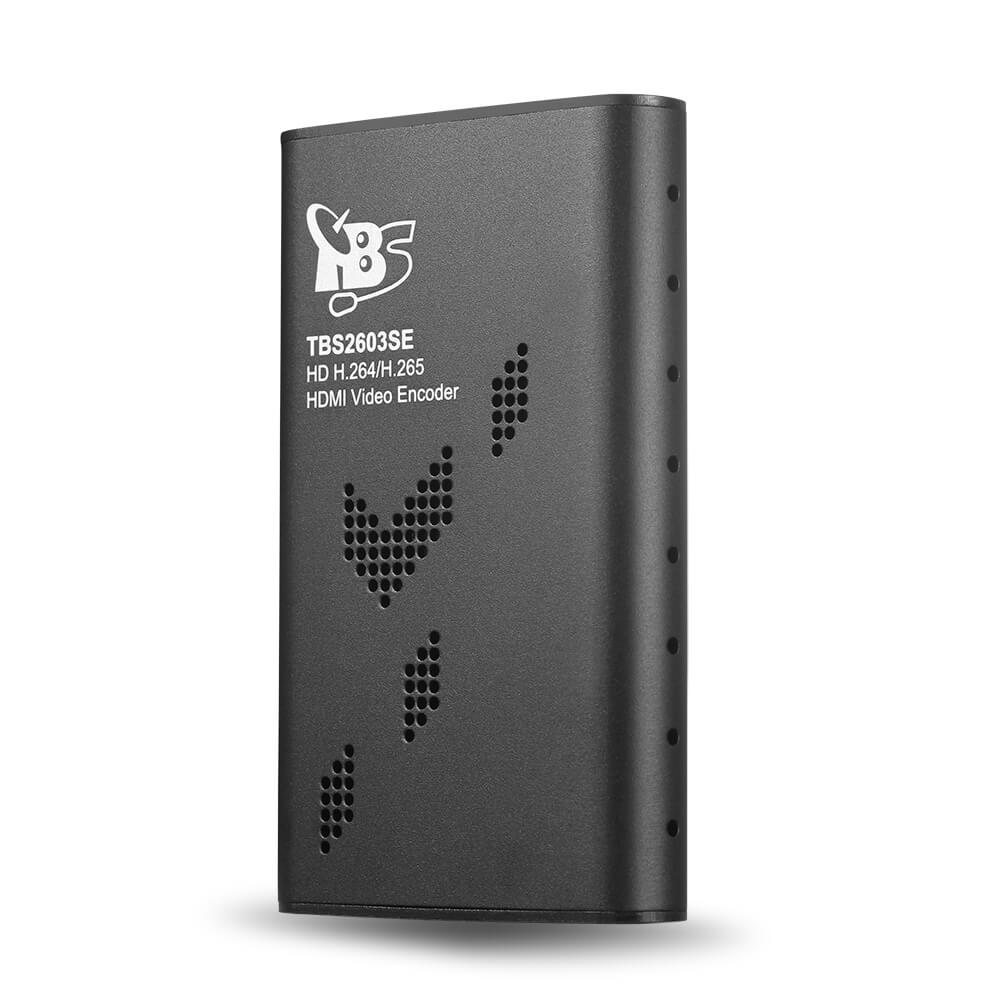

TBS2603se NDI® supported H.265/H.264 HDMI Video Encoder

TBS2603se NDI® supported H.265/H.264 HDMI Video Encoder

TBS2603se NDI® supported H.265/H.264 HDMI Video Encoder

Precio normal $281.00 + IVA INCLUIDO

$337.20 inc VAT

The TBS2603 has now been discontinued and replaced with the TBS2603SEV2 - Available here

TBS2603se NDI H.265/H.264 HDMI Video Encoder has been integrated native NDI® support, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI® compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

The TBS2603se is a professional HDMI video...

en stock

The TBS2603 has now been discontinued and replaced with the TBS2603SEV2 - Available here

TBS2603se NDI H.265/H.264 HDMI Video Encoder has been integrated native NDI® support, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI® compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

The TBS2603se is a professional HDMI video encoder, which supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. The TBS2603se can encode video streams from any HDMI video source to various media streaming servers (Wowza, Read 5, Xtream Codes, Flussonic, FMS etc) or online live broadcast platforms (Youtube, Facebook, Twitch, Vimeo, etc. ) over IP in real time.

TBS2603se video encoder is widely applied education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Model Numbver TBS2603SE
Entrada de vídeo 1x HDMI 1.4
Entrada de audio HDMI embeded
Video
Input Resolution 1920x1080P_50/60HZ; 1920x1080I_50/60HZ;1280x720P 50/60HZ;
720x576;640x480, and etc.
Ouput Resolution 1920x1080@60fps; 1680x1050; 1280x720; 1024x576; 850x480;
720x576;720x480;640x480;480x360;360x240; auto; customized and etc.
Encode H264 base line, H264 Main, H264 High, H265 Main
BitRate 0.5Mbps-20Mbps
BitRate Control CBR, VBR, AVBR,FIXQP
Protocolo HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP(RTMPS)
Audio
Encode AAC, MP3, MPEG2, PCMA
Frecuencia de muestreo 16K, 32K, 44.1K, 48K
Precisión de muestreo de 16 bits
BitRate 32Kb/s ~ 256Kb/s
Network Stream IN
Video H264, H265
Audio MPEG2, MP3, AAC
Protocolo HTTP, RTSP, RTP/UDP
Sistema
Ethernet / RJ45 1000 interfaz Ethernet base-T
Supported System Windows XP/VISTA/SERVER/WIN7/WIN10 ; Linux; MAC OS
Control webUI
General Spec.
Dimensión 98*61*15mm
Consumo de energía Less than 6W
