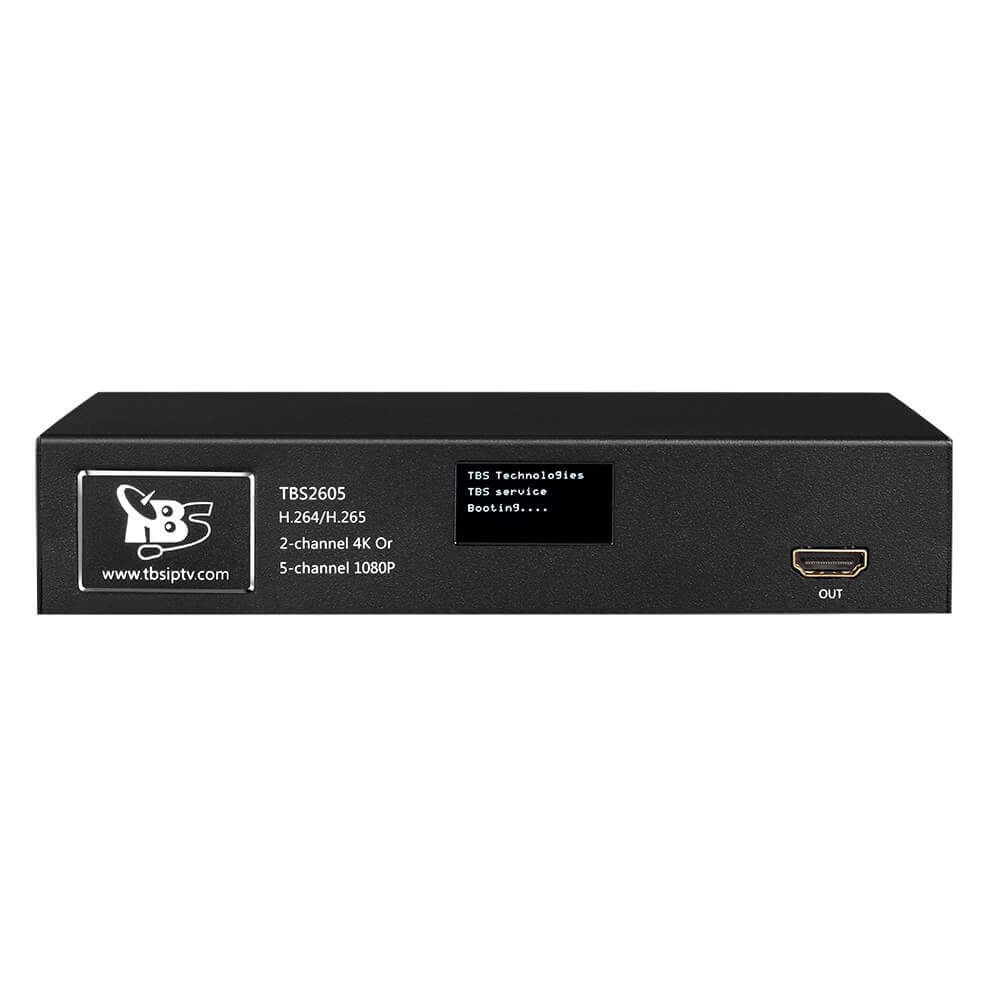

TBS2605 2 channel 4K or 5 Channel 1080P 60hz HDMI Video Encoder
TBS2605 2 channel 4K or 5 Channel 1080P 60hz HDMI Video Encoder
The TBS2605 is a professional 4K/H.265 HDMI encoder, which is also our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.
TBS 2605 HDMI Video encoder not only supports 2 channels 4K or 5 channels H.265 encoding, but also supports multiprotocol output. Each channel supports HTTP/HLS/RTMP/RTSP/UDP protocols outputting simultaneously, which is ideal for the customers who need to output with different protocols.
TBS 2605 is coupled with Web UI managing system and telnet remote access, and equipped with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.
Especificaciones:
| Model Number | TBS2605 |
| Entrada de vídeo | 5x HDMI 1.4 |
| Entrada de audio | Audio integrado HDMI |
| Video | |
| Resolución | Input: 3840x2160, 3392x2208, 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 640x480, 360x240, and etc. |
| Output: 3840x2160@30fps, 1920x1080@60fps, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 640x480, 360x240, and etc. | |
| Encode | H264 base line, H264 Main, H264 High, H265 Main |
| Velocidad de datos | 0.5Mbps~20Mbps |
| Control de tarifas | CBR/VBR |
| Protocolo | HTTP/HLS/RTMP/RTSP/ UDP |
| Audio | |
| Codificación | AAC, MP3 |
| Sampling rate: | 16K, 32K, 44.1K, 48K |
| Precisión de muestreo | de 16 bits |
| Velocidad de datos | 32Kb/s ~ 256Kb/s |
| Network Stream Input | |
| Video | H.264 / H.265 |
| Audio | MPEG 1/2, MP3, AAC |
| Protocolo | HTTP / RTSP / RTP / UDP (multicast, unicast) |
| Sistema | |
| Ethernet / RJ45 | 1000 interfaz Ethernet base-T |
| Sistema | WINDOWS XP/VISTA/SERVER2003 controlador/SERVER2008/WIN7 32 y WIN7 64; Linux |
| Control | WEBUI |
| General Spec. | |
| Dimensión | 185 * 119 * 36mm(length, width, height) |
| Poder | less than 15W |
