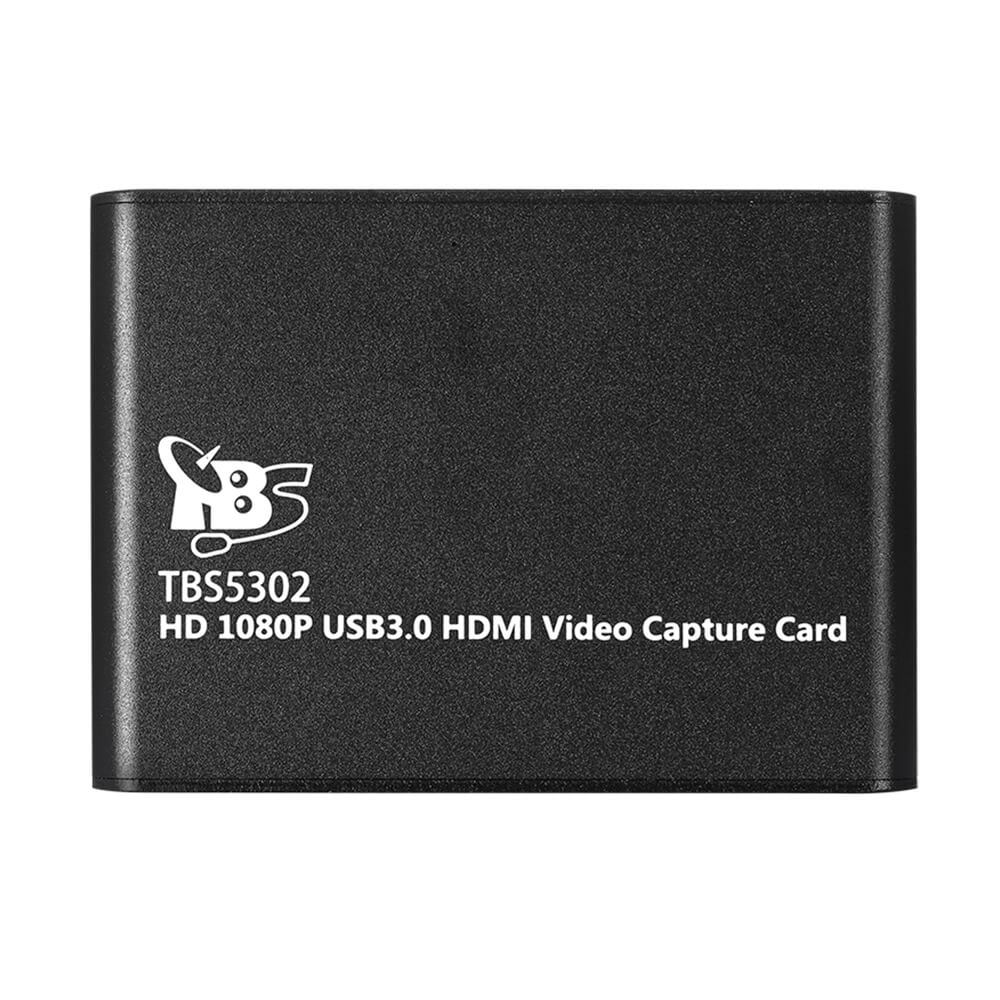

TBS5302 - 1080P USB3.0 HDMI Video Capture Card

TBS5302 - 1080P USB3.0 HDMI Video Capture Card

TBS5302 - 1080P USB3.0 HDMI Video Capture Card

Precio normal $140.00 + IVA INCLUIDO

$168.00 inc VAT

The TBS5302 1080p USB3.0 HDMI HD Video capture card with HDMI 1.4 portis a device which has a superior performance, superior compatibility, simple installation and many other features. It completely support full HD Video and Audio capture and playback. It not only cancapture one HD 1080P 60FPS input and output signal, but also offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a HDMI loop out port for connecting another HDMI device...

en stock

The TBS5302 1080p USB3.0 HDMI HD Video capture card with HDMI 1.4 portis a device which has a superior performance, superior compatibility, simple installation and many other features. It completely support full HD Video and Audio capture and playback. It not only cancapture one HD 1080P 60FPS input and output signal, but also offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a HDMI loop out port for connecting another HDMI device when you are making live stream.


TBS5302 support with Windows 8/10 and compatible with many USB3.0 chipset(Intel , Renesas , ASMedia , FrescoLogic ), PC le Gen1.1 x1 expansion via USB3.0 interface. The HD video capture meets UVC and UAC standard , without having to install drivers and settings , the real Pnp , easy to use.

Interfaz USB3.0
Video input HMDI 1.4
Input Resolution 1920x1080_P/I 60hz; 1920x1080_P/I 50hz;1920x1080_P 30hz;1920x1080_P 25hz;
1920x1080_P 24hz; 720_P 60hz; 720P 50hz;576_P/I; 480_P/I
Video Output 1920x1080 60fps
Entrada de audio HDMI embedded
3.5mm microphone
Audio output HDMI loop out
Earphone, loudspeaker
Video Capture Standard of UVC and UAC
Aplicación Windows Media Encoder; Adobe Flash Media Encoder;RealRpoducer Plus;
VLC Media Player; Wire cast; Pot Player; OBS
Software compatible Windows Media Encoder
Adobe Flash Media Live Encoder (windows)
Real Producer Plus (Windows)
VLC (Windows)
Quick Time Broadcaster (Windows)
Quick Time Player (Windows)
Wire Cast (Windows )
Pot Player( Windows)
Tamaño 88*63*22mm
Consumption menos de 2.5 W
Temperatura 0-50℃
Storage temperature -20
Storage humidity 5%-90%
system
OS Windows® 10 / Windows 8.1 / (Windows 7 (SP1)need install driver) Linux (kernel version 2.6.38 and above)
PC Intel® Core i5 -4400 3.10 GHz + NVIDIA® GeForce® GTX or more advanced
Laptop Intel Core i7-4810 OMQ + NVIDIA GeForce GTX 870M or more advanced
RAM 8 GB
Mobile phone Android phone Only support USB2.0, not supports USB3.0 (because Adroid UVC driver not supports USB3.0)
