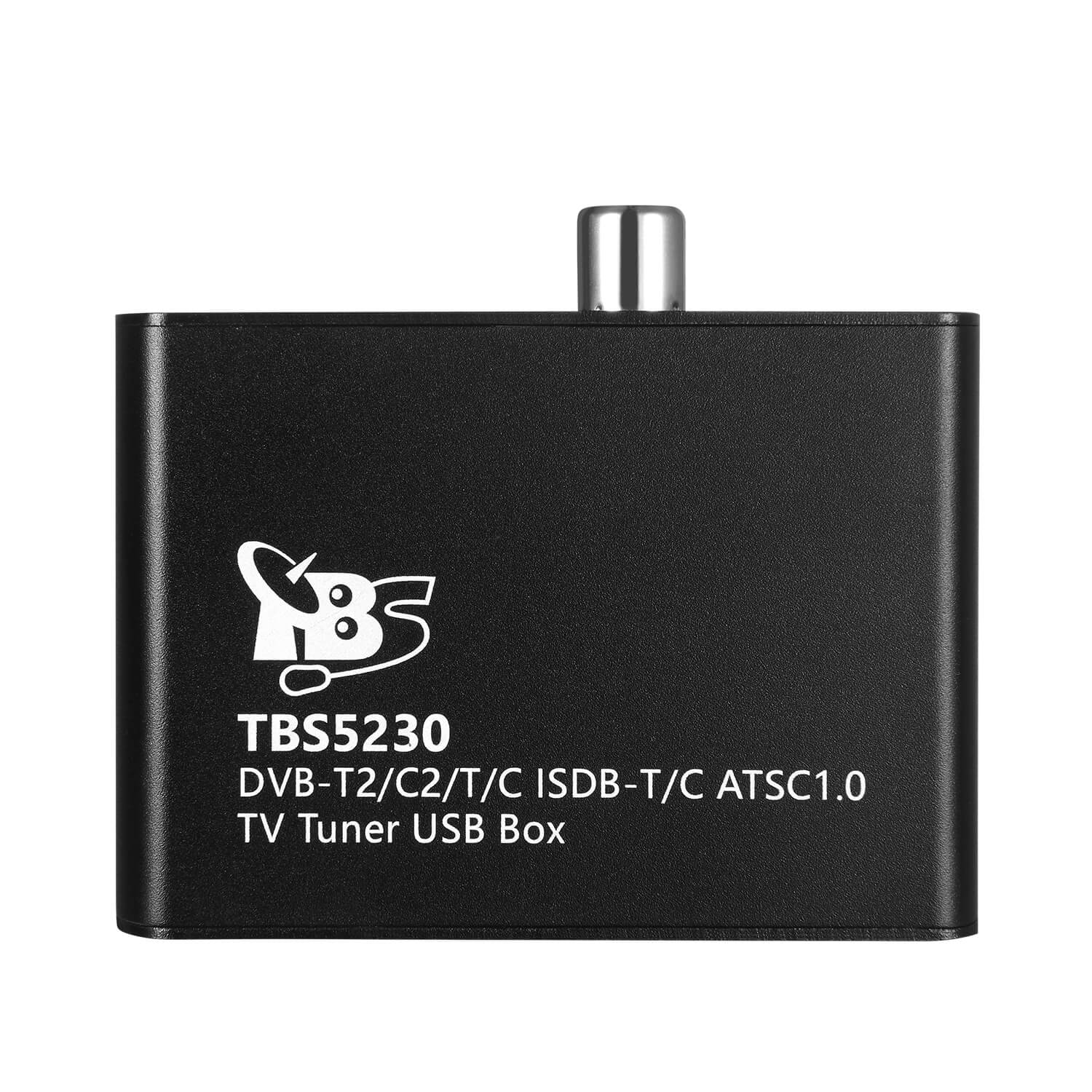

TBS5230 DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 TV Tuner Box
TBS5230 DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 TV Tuner Box
TBS5230 is a external TV tuner card with USB2.0 interface, it is capable of receiving digital TV channels of multiple standards: DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. Through the USB interface, you can easily plug the TBS5230 Universal TV Tuner to your desktop or laptop PC, with appropriate signal cable connected and software installed, it's convenient to switch among different standards, and enjoy more TV channels than using just one single TV standard.
Características principales:
- Multi-standard TV USB box
- DVB-T2/C2/T/C(J.83A/B/C, ISDB-T/C, ATSC1.0. SD or HD TV receiving
- High-definition video, real-Time and scheduled video recording
- Sintonizador de alta sensibilidad DVB-T2 OCTA para la mejor recepción de TV digital
- Controlador BDA de Windows y controlador de Linux listo
| DVB-T2 and T2-tdte | Canal de recepción: banda VHF, banda UHF |
| Ancho de banda: 1,7, 5, 6, 7, 8MHz | |
| Modo FFT: 1K, 2K, 4K, 8K, 16K, 32K | |
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | |
| 16, 32, 64, 128 and 256QAM modulations | |
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | |
| DVB-T | 6, 7 and 8MHz channel bandwidths |
| 2 and 8K FFT | |
| QPSK, 16 and 64QAM | |
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | |
| DVB-C2 | 6 and 8MHz channel bandwidths |
| 1/64 and 1/128 guard intervals | |
| 16, 64, 256, 1024, 4096 QAM | |
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | |
| DVB-C | 1.7 to 7.2 Msym/s |
| 16, 32, 64, 128 and 256QAM | |
| 0.15 roll-off factor | |
| ISDB-T | 6, 7 and 8MHz bandwidth |
| 2, 4 and 8K FFT | |
| 1/32, 1/16, 1/8 and 1/4 guard intervals | |
| QPSK, 16QAM and 64QAM | |
| ISDB-C | 5.274 Msym/s |
| 0.13 roll-off factor | |
| 64 and 256QAM | |
| TSMF (Transport Streams Multiplexing Frame) | |
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s |
| 0.18 and 0.12 roll-off factor | |
| 64 and 256QAM | |
| ATSC1.0 | 6MHz channel bandwidths |
| 8VSB modulation | |
| 2/3 code rate | |
| Consumo de energía | |
| Entrada/potencia: | |
| Temperatura | 0 ~ 60℃ |
| Requisitos del sistema | Windows XP / Vista/ 7/8/10, tdnux |
| Ranura PCI Express x1, x4, x8 o x16 disponible | |
| Digital TV signal DVB-T2/C2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0. | |
| Dimensión: | |
| Tamaño de la tarjeta de sintonizador de TV | 9 * 7.5 * 2.5(cm) |
| Peso neto | 120g |
| Tamaño de la caja de regalo | 17 * 16.5 * 8.5(cm) |
| Peso | 350g |
| Contenido del paquete | 1 x TBS5230 |
| 1 x cable USB | |
| 1 x F-IEC | |
